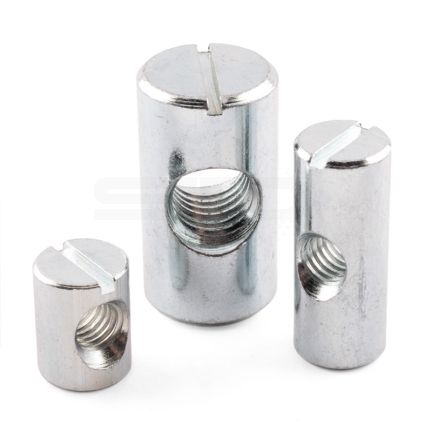

Cross Dowels
Product Description
Cross Dowels are used in the assembly of corner joints and frames. They are often used in conjunction with our Connector Bolts.
Material
Steel
Finish
Zinc Plated/Self Colour
Specials
If the Cross Dowels that you are looking for are not shown, then please contact our sales office with your dimensions and quantities. We stock a wide range of specials and can manufacture different sizes if required.
| Product Code | Thread (d) | A | L | External | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| CD-4012-ZP | M4 | 6 | 12 | 8 | £10.50 | i |
50
|
Enquire Now |
| CD-4016-ZP | M4 | 8 | 16 | 8 | £14.50 | i |
50
|
Enquire Now |
| CD-4020-ZP | M4 | 10 | 20 | 8 | £16.50 | i |
50
|
Enquire Now |
| CD-5012-ZP | M5 | 6 | 12 | 8 | £12.75 | i |
50
|
Enquire Now |
| CD-5016-ZP | M5 | 8 | 16 | 8 | i | i | - | Enquire Now |
| CD-5020-ZP | M5 | 10 | 20 | 8 | £19.00 | i |
50
|
Enquire Now |
| CD-6012-STST | M6 | 6 | 12 | 10 | £25.00 | i |
25
|
Enquire Now |
| CD-612-ZP | M6 | 7 | 12.5 | 10 | £10.00 | 19865 |
100
|
|
| CD-108-ZP | M6 | 5 | 13 | 10 | £15.10 | 20700 |
100
|
|
| CD-608 | M6 | 6.5 | 13 | 10 | £15.12 | i |
100
|
Enquire Now |
| CD-109-ZP | M6 | 6 | 14 | 10 | £13.50 | 13950 |
100
|
|
| CD-110-ZP | M6 | 7 | 14 | 10 | £14.50 | 178120 |
100
|
|
| CD-112-ZP | M6 | 8 | 16 | 10 | £11.00 | 23931 |
100
|
|
| CD-115-ZP | M6 | 9 | 18 | 10 | £12.00 | i |
100
|
Enquire Now |
| CD-620-ZP | M6 | 10 | 20 | 10 | £11.00 | 24870 |
100
|
|
| CD-625-ZP | M6 | 12.5 | 25 | 10 | £13.50 | 10591 |
100
|
|
| CD-630-ZP | M6 | 15 | 30 | 10 | £14.00 | 10086 |
100
|
|
| CD-814 | M8 | 7 | 14 | 12 | £14.25 | 6700 |
50
|
|
| CD-8016-ZP | M8 | 8 | 16 | 12 | £16.55 | i |
50
|
Enquire Now |
| CD-818 | M8 | 12 | 18 | 12 | i | i | - | Enquire Now |
| CD-820 | M8 | 10 | 20 | 12 | £13.35 | 10545 |
50
|
|
| CD-830 | M8 | 15 | 30 | 12 | £11.00 | 6000 |
50
|
|
| CD-840 | M8 | 20 | 40 | 12 | £12.25 | 2367 |
50
|
|
| CD-850 | M8 | 25 | 50 | 12 | £11.55 | i |
50
|
Enquire Now |
| CD-1028-ZP | M10 | 15 | 28 | 15 | £18.50 | 16504 |
50
|
