Slab / Weld Base Teenuts
Product Description

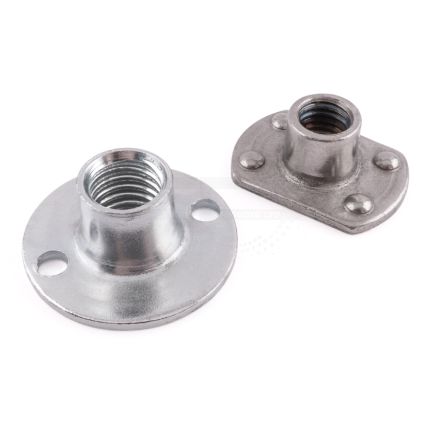

Slab Base Teenuts provide a low cost threaded anchor fixing to sheet metal.
Material
Mild Steel
Finish
Zinc, Self Colour
Notes
> All parts without W2 Dimension have one weld pip each side of the barrel, and all with a W2 dimension have 2 weld pips on each side.
> DM style parts have two of four drilled holes.
> DM100-0029MMZINC - round base.
Specials
If the Slab Base Teenut that you are looking for is not shown, then please enquire to our sales office with the dimensions and quantities required. We stock a large range of specials and can manufacture different sizes upon request.
| Product Code | Thread | D | H | L1 | L2 | T | W1 | W2 | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM300-003MM | M3 | 4.2 | 6 | 17 | 12 | 0.9 | 9 | - | i | i | - | Enquire Now |
| BM300-003MM | M3 | 4.2 | 6 | 17 | 12 | 0.9 | 9 | - | i | i | - | Enquire Now |
| CM300-003MM | M3 | 4.2 | 6 | 17 | - | 0.9 | 9 | - | i | i | - | Enquire Now |
| AM400-004MM | M4 | 5.2 | 6 | 17 | 12 | 0.9 | 9 | - | £10.80 | 2390 |
100
|
|
| BM400-004MM | M4 | 4.2 | 6 | 17 | 12 | 0.9 | 9 | - | £10.80 | 6920 |
100
|
|
| CM400-004MM | M4 | 4.2 | 6 | 17 | - | 0.9 | 9 | - | £10.80 | 803 |
100
|
|
| DM400-004MM | M4 | 4.2 | 6 | 17 | 12 | 0.9 | 9 | - | £10.80 | 2050 |
100
|
|
| AM500-005MM | M5 | 6.6 | 8 | 19 | 14 | 1.2 | 11 | - | £12.60 | 9060 |
100
|
|
| BM500-005MM | M5 | 6.6 | 8 | 19 | 14 | 1.2 | 11 | - | £12.60 | 2130 |
100
|
|
| CM500-005MM | M5 | 6.6 | 8 | 19 | - | 1.2 | 11 | - | £12.60 | 3632 |
100
|
|
| DM500-005MM | M5 | 6.6 | 8 | 19 | 14 | 1.2 | 11 | - | £12.60 | 1130 |
100
|
|
| AM600-006MM | M6 | 7.5 | 8 | 19 | 14 | 1.2 | 11 | - | £14.40 | 5090 |
100
|
|
| BM600-006MM | M6 | 7.5 | 8 | 19 | 14 | 1.2 | 11 | - | £14.40 | 3250 |
100
|
|
| CM600-006MM | M6 | 7.5 | 7.8 | 18.9 | - | 1.2 | 11 | - | £14.40 | 4000 |
100
|
|
| DM600-006MM | M6 | 7.5 | 8 | 19 | 14 | 1.2 | 11 | - | £14.40 | i |
100
|
Enquire Now |
| CM800-088MM | M8 | 9.7 | 8.6 | 22 | - | 1.4 | 14 | - | £10.00 | 20850 |
50
|
|
| AM800-008MM | M8 | 10.5 | 11 | 26 | 16 | 2 | 18 | 10 | £18.90 | 4070 |
100
|
|
| BM800-008MM | M8 | 10.5 | 11 | 26 | 16 | 2 | 18 | 10 | £18.90 | 1728 |
100
|
|
| CM800-008MM | M8 | 10.5 | 11 | 26 | - | 2 | 18 | - | £18.90 | 13158 |
100
|
|
| DM800-008MM | M8 | 10.5 | 11 | 26 | 16 | 2 | 18 | 10 | £18.90 | 3300 |
100
|
|
| AM100-010MM | M10 | 12.2 | 10.5 | 26 | 17 | 2 | 18 | 10 | £10.35 | 12782 |
50
|
|
| BM100-010MM | M10 | 12.2 | 12 | 26 | 16 | 2 | 18 | 10 | £10.35 | 1400 |
50
|
|
| CM100-010MM | M10 | 12.2 | 10.5 | 26 | - | 2 | 18 | - | £10.35 | 10299 |
50
|
|
| DM100-010MM | M10 | 12.2 | 12 | 26 | 16 | 2 | 18 | 10 | £10.35 | 5250 |
50
|
|
| DM100-0029MMZINC | M10 | 12.1 | 12 | 32 | - | 1.6 | 30.5 | - | £13.55 | 107400 |
50
|
