Insert Nuts - D Type
Product Description

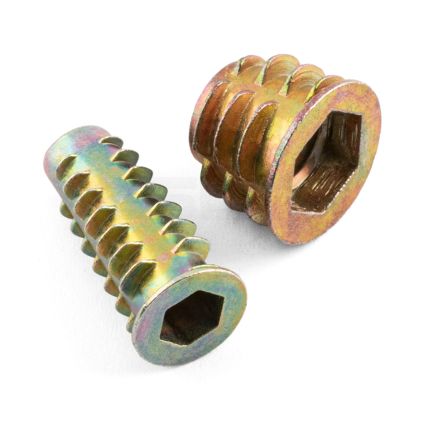

D-Type Insert Nuts (D Nuts) provide a strong permanent thread for wood. They are installed by simply screwing the self tapping body into the material. The unique external thread ensures strong resistance against pull out and the flanged head prevents splitting of the surfaces and driving the Insert in too far.
Material
Zinc Alloy Die Cast
Finish
Zinc and Yellow
Specials
If the D Type Insert Nuts that you are looking for are not shown, then please enquire to our sales team with the dimensions and the quantity. We stock a wide range of specials and can manufacture different sizes if required.
| Product Code | Thread | Hole Size | D1 | D2 | D3 | H | L | Finish | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ID-4010-BZP | M4 | 5.6 - 6 | 8.5 | 8 | 5.5 | 4 | 10 | Bright zinc plated | £10.32 | 36566 |
100
|
|
| ID-4010-YZP | M4 | 5.6 - 6 | 8.5 | 8 | 5.5 | 4 | 10 | Yellow zinc plated | £10.32 | 4272 |
100
|
|
| ID-5010-YZP | M5 | 7.5 - 7.9 | 9.4 | 9.4 | 6.1 | 5.4 | 9.8 | Yellow zinc plated | £11.17 | 33418 |
100
|
|
| ID-5013-BZP | M5 | 7.5 - 7.9 | 11.5 | 10.6 | 6.6 | 5 | 13 | Bright zinc plated | £11.00 | 50 |
100
|
|
| ID-5013-YZP | M5 | 7.5 - 7.9 | 11.5 | 10.6 | 6.6 | 5 | 13 | Yellow zinc plated | £10.97 | 89996 |
100
|
|
| ID-6010-BZP | M6 | 8.7 - 9.1 | 12.3 | 11.6 | 8 | 6 | 10 | Bright zinc plated | £10.37 | 25295 |
100
|
|
| ID-6010-YZP | M6 | 8.7 - 9.1 | 12.3 | 11.6 | 8 | 6 | 10 | Yellow zinc plated | £10.28 | i |
100
|
Enquire Now |
| ID-6013-BZP | M6 | 8.7 - 9.1 | 12.5 | 11.7 | 7.8 | 6 | 13 | Bright zinc plated | £10.68 | 28 |
100
|
|
| ID-6013-YZP | M6 | 8.7 - 9.1 | 12.5 | 11.7 | 7.8 | 6 | 13 | Yellow zinc plated | £11.00 | i |
100
|
Enquire Now |
| ID-6016-ZP | M6 | 8.7 - 9.1 | 12.5 | 11.7 | 7.6 | 6 | 16 | Zinc plated | £10.61 | i |
100
|
Enquire Now |
| ID-6016-YZP | M6 | 8.7 - 9.1 | 12.5 | 11.7 | 7.6 | 6 | 16 | Yellow zinc plated | £10.76 | 98000 |
100
|
|
| ID-6020-BZP | M6 | 8.7 - 9.1 | 12.5 | 12 | 7.5 | 6 | 20 | Bright zinc plated | £14.96 | i |
100
|
Enquire Now |
| ID-6020-YZP | M6 | 8.7 - 9.1 | 12.5 | 12 | 7.5 | 6 | 20 | Yellow zinc plated | £11.64 | 4887 |
100
|
|
| ID-6025-YZP | M6 | 8.7 - 9.1 | 12.5 | 11.96 | 8 | 6 | 25 | Yellow zinc plated | £13.81 | 19844 |
100
|
|
| ID-8013-BZP | M8 | 11.1 - 11.5 | 14.5 | 13.5 | 9.6 | 8 | 13 | Bright zinc plated | £13.21 | 28614 |
100
|
|
| ID-8013-YZP | M8 | 11.1 - 11.5 | 14.5 | 13.5 | 9.6 | 8 | 13 | Yellow zinc plated | £12.38 | i |
100
|
Enquire Now |
| ID-8020-ZP | M8 | 11.1 - 11.5 | 14.5 | 13.5 | 9.6 | 8 | 20 | Zinc plated | £12.43 | 46682 |
100
|
|
| ID-8020-YZP | M8 | 11.1 - 11.5 | 14.5 | 13.5 | 9.6 | 8 | 20 | Yellow zinc plated | £12.23 | 47804 |
100
|
|
| ID-8025-YZP | M8 | 11.1 - 11.5 | 14.5 | 13.8 | 9.5 | 8 | 25 | Yellow zinc plated | £13.16 | i |
100
|
Enquire Now |
| ID-10013-YZP | M10 | 12.7 - 13.1 | 16 | 15.1 | 11.7 | 10 | 13 | Yellow zinc plated | £13.70 | 3294 |
100
|
|
| ID-10025-YZP | M10 | 12.7 - 13.1 | 15.9 | 15.1 | 11.7 | 10 | 25 | Yellow zinc plated | £14.72 | 4954 |
100
|
