Fast crank lifting system 3052

Product Description

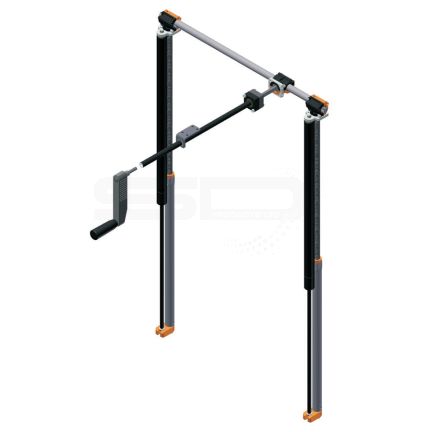

Crank lifting system for fast height adjustment of sit- stand workplaces. Mechanical synchronization of two spindle lift drives with crank, brake unit, deflection gear and connecting tube. The system is suitable for 2-leg table frames with high efficiency of the guide units. Convenient adjustment with up to 40 kg table loads is ensured. The lift of 500 mm meets the requirements of the new standard for sitting-standing workplaces.

Special features
The system consists of a modular design allowing trouble-free assembly of the table by the end customer. Connecting tube and deflection gear are attached only during final assembly. This permits shipping the tables in the customary manner worldwide with minimum package dimensions.

Customer specific
The length of the connecting tube is adjusted individually, depending on the spacing of the table legs. The units can also be furnished with other spring forces.

Safety instruction
Gas springs can develop high acceleration forces. Please handle the assembly and this disassembly with care and diligence.

Additional technical data Fast crank lifting system 3052

Product Code Ratio Stroke Recommended table load Retracted length Installation Length No. of Packs
3052.00-0002 1:1 500 mm 0 - 40 kg 625 mm - Enquire Now
3052.40-V01LXXXX ø 15 - - customised L1 = a+4, L2 = b+4 Enquire Now
3052.09-V01AXXX - - - customised - Enquire Now
3052.00-V01AXXX 1:1 - - customised - Enquire Now
3052.00-V02AXXX 1:1 - - customised 65.5mm + XXX Enquire Now
