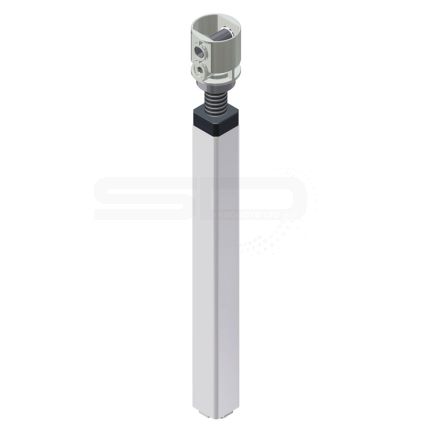

Bevel gear with spindle and support tube 3824

simple_product
For illustration purposes only

Product Description

These gears are suitable for installations in tubes with an internal diameter of 31 mm. The diameter of the housing can be modified to other tube diameters if the order size is sufficient.

Special features
Ratio 1:1
Housing made of die-cast zinc
Case-hardened gear-wheels
Spindle nut made of glass-fibre reinforced plastic
Complete bevel-gear drive unit, with a spindle, spindle nut and support tube.

Customer specific
The gear can be supplied with various spindle lengths and spindle pitches.

Caution
Please take into account that depending on the spindle pitch, the system could back-drive.

Ketterer logo

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 10 + 15 =

* Required Fields

  • Standard next day delivery - £10

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Product Code RatioInputStroke max.Type of spindleMax. drive torqueMax. lifting force Qty (In Stock) Pack Size Price (Per Pack)
3824.00-V01EXXXHXXX 1:1hex 6 mmretracted length - 98 mmTr 14x3 RH3 Nm1000 N N/A - N/A Enquire Now
