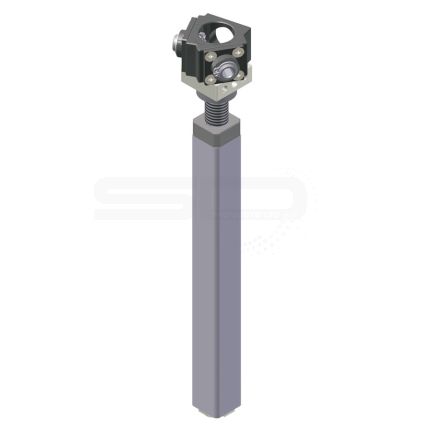

Bevel gear with spindle and support tube 3014

For illustration purposes only

Product Description

This gear unit is designed to be used for many different mechanical drive solutions. Applications of adjustment for: Steppless height-adjustable desks, umbrellas, adjustable windows, partition walls, etc. and any kind of linear adjustment in the industrial machinery industry.

Special features
Ratio 1:1; 1.3:1
Glass fibre reinforced plastic housing at angle 120° or 135°
Hardened steel gear cogs
1200 N load capacity
Output spindle for push force only

Customer specific
Because of the modular design it is possible to meet special customer requirements even for small quantities. The gear is available in various lengths and with various mounting brackets. Different input angles are available even in small quantities.

Please take into account that depending on the spindle pitch, the system could back-drive.

Ketterer logo

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity


*Telephone Number




*Are you human? Then what is 13 + 15 =

* Required Fields

  • Standard next day delivery - £10

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Product Code RatioInputStroke max.Type of spindleNumber of inputsMax. drive torqueMax. lifting force Qty (In Stock) Pack Size Price (Per Pack)
3014 1:1, 1.3:1hex 6 mmretracted length -99 mmTr14x3 RH23 Nm1200 N N/A - N/A Enquire Now
