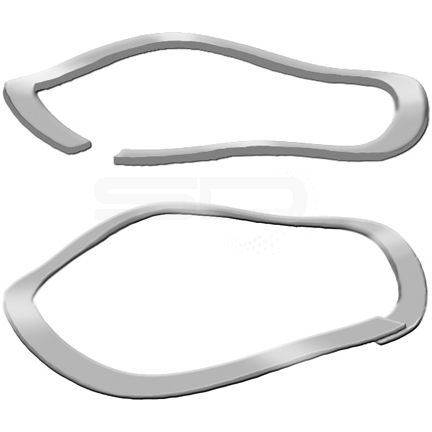

WSS-O, WSS-G Wave Springs
Product Description
Single Turn, Metric
Ideal for short deflection applications with low to medium forces. Offered in a number of waves and material thicknesses. Designed for a wide range of bore and rod diameters.
| Product Code | Housing Dia. (Dh) | Shaft Dia. Clearance (Ds) | Load (N) | Work Height (WH) | Free Height Ref. (FH) | Number of Waves* | Thickness T | Section S | Spring Rate Ref. N/mm | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| WSS-O-63 | 16 | 11.28 | 44.5 | 1.57 | 2.29 | 3 | 0.25 | 1.98 | 65 | Enquire Now |
| WSS-O-75 | 19 | 14.28 | 53.4 | 1.57 | 3.05 | 3 | 0.25 | 1.98 | 35 | Enquire Now |
| WSS-O-87 | 22 | 16.46 | 62.3 | 1.57 | 2.79 | 3 | 0.3 | 2.39 | 48 | Enquire Now |
| WSS-O-95 | 24 | 18.46 | 66.7 | 1.57 | 3.56 | 3 | 0.3 | 2.39 | 35 | Enquire Now |
| WSS-O-102 | 26 | 18.22 | 71.2 | 1.98 | 2.54 | 3 | 0.41 | 3.38 | 111 | Enquire Now |
| WSS-O-110 | 28 | 20.22 | 75.6 | 1.98 | 2.79 | 3 | 0.41 | 3.38 | 85 | Enquire Now |
| WSS-O-118 | 30 | 22.22 | 84.5 | 1.98 | 3.3 | 3 | 0.41 | 3.38 | 66 | Enquire Now |
| WSS-O-126 | 32 | 24.22 | 89 | 1.98 | 3.81 | 3 | 0.41 | 3.38 | 52 | Enquire Now |
| WSS-O-138 | 35 | 27.22 | 97.9 | 1.98 | 4.57 | 3 | 0.41 | 3.38 | 38 | Enquire Now |
| WSS-O-146 | 37 | 28.72 | 102.3 | 1.98 | 3.81 | 3 | 0.46 | 3.63 | 58 | Enquire Now |
| WSS-O-158 | 40 | 31.72 | 111.2 | 1.98 | 5.08 | 3 | 0.46 | 3.63 | 37 | Enquire Now |
| WSS-O-165 | 42 | 33.72 | 115.7 | 1.98 | 3.05 | 4 | 0.46 | 3.63 | 99 | Enquire Now |
| WSS-O-185 | 47 | 38.72 | 129 | 1.98 | 3.81 | 4 | 0.46 | 3.63 | 68 | Enquire Now |
| WSS-O-205 | 52 | 43.11 | 142.4 | 2.36 | 3.56 | 4 | 0.61 | 3.81 | 121 | Enquire Now |
| WSS-O-217 | 55 | 46.11 | 151.3 | 2.36 | 3.81 | 4 | 0.61 | 3.81 | 100 | Enquire Now |
| WSS-O-244 | 62 | 51.69 | 169.1 | 2.36 | 4.32 | 4 | 0.61 | 4.52 | 85 | Enquire Now |
| WSS-O-268 | 68 | 57.17 | 186.9 | 2.77 | 4.32 | 4 | 0.76 | 4.78 | 131 | Enquire Now |
| WSS-O-276 | 70 | 59.17 | 191.3 | 2.77 | 4.32 | 4 | 0.76 | 4.78 | 119 | Enquire Now |
| WSS-O-284 | 72 | 61.17 | 195.8 | 2.77 | 4.57 | 4 | 0.76 | 4.78 | 108 | Enquire Now |
| WSS-O-295 | 75 | 64.17 | 204.7 | 2.77 | 5.08 | 4 | 0.76 | 4.78 | 94 | Enquire Now |
| WSS-O-315 | 80 | 68.66 | 218 | 2.77 | 5.59 | 4 | 0.76 | 4.78 | 76 | Enquire Now |
| WSS-O-335 | 85 | 71.38 | 231.4 | 2.77 | 5.59 | 4 | 0.76 | 5.92 | 83 | Enquire Now |
| WSS-O-354 | 90 | 76.38 | 249.2 | 2.77 | 6.35 | 4 | 0.76 | 5.92 | 68 | Enquire Now |
| WSS-O-374 | 95 | 81.38 | 262.5 | 2.77 | 7.37 | 4 | 0.76 | 5.92 | 57 | Enquire Now |
| WSS-G-394 | 100 | 86.38 | 275.9 | 2.77 | 4.57 | 5 | 0.76 | 5.92 | 157 | Enquire Now |
| WSS-G-413 | 105 | 91.38 | 289.2 | 2.77 | 5.08 | 5 | 0.76 | 5.92 | 134 | Enquire Now |
| WSS-G-433 | 110 | 96.38 | 302.6 | 2.77 | 5.33 | 5 | 0.76 | 5.92 | 115 | Enquire Now |
| WSS-G-453 | 115 | 101.38 | 315.9 | 3.18 | 6.35 | 5 | 0.76 | 5.92 | 99 | Enquire Now |
| WSS-G-472 | 120 | 106.38 | 329.3 | 3.18 | 7.11 | 5 | 0.76 | 5.92 | 86 | Enquire Now |
| WSS-G-492 | 125 | 111.38 | 342.6 | 3.18 | 7.62 | 5 | 0.76 | 5.92 | 76 | Enquire Now |
| WSS-G-512 | 130 | 116.38 | 356 | 3.18 | 8.64 | 5 | 0.76 | 5.92 | 67 | Enquire Now |
| WSS-G-532 | 135 | 121.38 | 369.3 | 3.18 | 9.4 | 5 | 0.76 | 5.92 | 59 | Enquire Now |
| WSS-G-551 | 140 | 126.38 | 382.7 | 3.18 | 6.86 | 6 | 0.76 | 5.92 | 108 | Enquire Now |
| WSS-G-571 | 145 | 131.38 | 396 | 3.18 | 7.37 | 6 | 0.76 | 5.92 | 97 | Enquire Now |
| WSS-G-591 | 150 | 136.38 | 404.9 | 3.18 | 7.87 | 6 | 0.76 | 5.92 | 87 | Enquire Now |
| WSS-G-630 | 160 | 146.38 | 440.5 | 3.18 | 9.4 | 6 | 0.76 | 5.92 | 71 | Enquire Now |
| WSS-G-650 | 165 | 151.38 | 453.9 | 3.18 | 10.41 | 6 | 0.76 | 5.92 | 64 | Enquire Now |
| WSS-G-669 | 170 | 156.38 | 467.2 | 3.18 | 11.18 | 6 | 0.76 | 5.92 | 58 | Enquire Now |
| WSS-G-689 | 175 | 154.16 | 480.6 | 3.96 | 8.13 | 6 | 0.81 | 9.53 | 116 | Enquire Now |
| WSS-G-709 | 180 | 159.16 | 493.9 | 3.96 | 8.64 | 6 | 0.81 | 9.53 | 105 | Enquire Now |
| WSS-G-728 | 185 | 164.16 | 507.3 | 3.96 | 9.14 | 6 | 0.81 | 9.53 | 97 | Enquire Now |
| WSS-G-748 | 190 | 169.16 | 520.6 | 3.96 | 9.91 | 6 | 0.81 | 9.53 | 88 | Enquire Now |
| WSS-G-787 | 200 | 179.16 | 547.3 | 3.96 | 7.11 | 7 | 0.81 | 9.53 | 174 | Enquire Now |
| WSS-G-807 | 205 | 184.16 | 560.7 | 3.96 | 7.37 | 7 | 0.81 | 9.53 | 161 | Enquire Now |
| WSS-G-827 | 210 | 189.16 | 578.5 | 3.96 | 7.87 | 7 | 0.81 | 9.53 | 149 | Enquire Now |
| WSS-G-847 | 215 | 194.16 | 591.8 | 3.96 | 8.38 | 7 | 0.81 | 9.53 | 138 | Enquire Now |
| WSS-G-866 | 220 | 199.16 | 605.2 | 3.96 | 8.64 | 7 | 0.81 | 9.53 | 128 | Enquire Now |
| WSS-G-886 | 225 | 204.16 | 618.5 | 3.96 | 7.11 | 8 | 0.81 | 9.53 | 203 | Enquire Now |
| WSS-G-906 | 230 | 209.16 | 631.9 | 3.96 | 6.1 | 9 | 0.81 | 9.53 | 303 | Enquire Now |
| WSS-G-925 | 235 | 214.16 | 645.2 | 3.96 | 6.35 | 9 | 0.81 | 9.53 | 283 | Enquire Now |
| WSS-G-945 | 240 | 219.16 | 658.6 | 3.96 | 6.35 | 9 | 0.81 | 9.53 | 265 | Enquire Now |
| WSS-G-984 | 250 | 229.16 | 685.3 | 3.96 | 6.86 | 9 | 0.81 | 9.53 | 232 | Enquire Now |
| WSS-G-1024 | 260 | 239.16 | 712 | 3.96 | 7.37 | 9 | 0.81 | 9.53 | 205 | Enquire Now |
| WSS-G-1043 | 265 | 244.16 | 725.3 | 3.96 | 7.62 | 9 | 0.81 | 9.53 | 193 | Enquire Now |
| WSS-G-1063 | 270 | 249.16 | 743.1 | 3.96 | 8.13 | 9 | 0.81 | 9.53 | 182 | Enquire Now |
| WSS-G-1102 | 280 | 259.16 | 769.8 | 3.96 | 8.64 | 9 | 0.81 | 9.53 | 162 | Enquire Now |
| WSS-G-1142 | 290 | 269.16 | 796.5 | 3.96 | 9.4 | 9 | 0.81 | 9.53 | 144 | Enquire Now |
| WSS-G-1181 | 300 | 279.16 | 823.2 | 3.96 | 10.41 | 9 | 0.81 | 9.53 | 129 | Enquire Now |
| WSS-G-1221 | 310 | 289.16 | 849.9 | 3.96 | 7.11 | 9 | 1.07 | 9.53 | 264 | Enquire Now |
| WSS-G-1260 | 320 | 299.16 | 876.6 | 3.96 | 7.62 | 9 | 1.07 | 9.53 | 239 | Enquire Now |
| WSS-G-1339 | 340 | 319.16 | 934.5 | 3.96 | 8.64 | 9 | 1.07 | 9.53 | 198 | Enquire Now |
| WSS-G-1378 | 350 | 329.16 | 961.1 | 3.96 | 9.4 | 9 | 1.07 | 9.53 | 180 | Enquire Now |
| WSS-G-1417 | 360 | 339.16 | 987.9 | 3.96 | 7.62 | 10 | 1.07 | 9.53 | 271 | Enquire Now |
| WSS-G-1457 | 370 | 349.16 | 1014.6 | 3.96 | 8.13 | 10 | 1.07 | 9.53 | 249 | Enquire Now |
| WSS-G-1496 | 380 | 359.16 | 1041.3 | 3.96 | 8.64 | 10 | 1.07 | 9.53 | 229 | Enquire Now |
| WSS-G-1535 | 390 | 369.16 | 1072.4 | 3.96 | 9.14 | 10 | 1.07 | 9.53 | 211 | Enquire Now |
| WSS-G-1575 | 400 | 379.16 | 1099.1 | 3.96 | 9.65 | 10 | 1.07 | 9.53 | 196 | Enquire Now |
| WSS-G-1614 | 410 | 382.82 | 1125.8 | 3.96 | 8.38 | 10 | 1.07 | 12.7 | 251 | Enquire Now |
| WSS-G-1654 | 420 | 392.82 | 1152.5 | 3.96 | 8.89 | 10 | 1.07 | 12.7 | 233 | Enquire Now |
| WSS-G-1693 | 430 | 402.82 | 1179.2 | 3.96 | 7.62 | 11 | 1.07 | 12.7 | 317 | Enquire Now |
| WSS-G-1732 | 440 | 412.82 | 1205.9 | 3.96 | 8.13 | 11 | 1.07 | 12.7 | 295 | Enquire Now |
| WSS-G-1811 | 460 | 432.82 | 1263.7 | 3.96 | 8.89 | 11 | 1.07 | 12.7 | 256 | Enquire Now |
| WSS-G-1890 | 480 | 452.82 | 1317.1 | 3.96 | 8.13 | 12 | 1.07 | 12.7 | 318 | Enquire Now |
| WSS-G-1969 | 500 | 472.82 | 1370.5 | 3.96 | 8.89 | 12 | 1.07 | 12.7 | 280 | Enquire Now |
| WSS-G-2126 | 540 | 512.82 | 1481.8 | 3.96 | 8.89 | 13 | 1.07 | 12.7 | 303 | Enquire Now |
| WSS-G-2284 | 580 | 552.82 | 1593 | 3.96 | 8.89 | 14 | 1.07 | 12.7 | 327 | Enquire Now |
