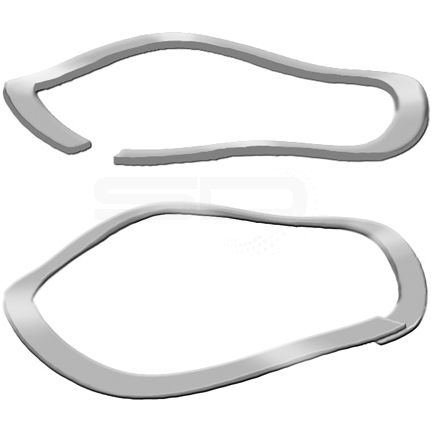

WSS-O, WSS-G Wave Springs - WSS-G-650

Product Description

Single Turn, Metric

Ideal for short deflection applications with low to medium forces. Offered in a number of waves and material thicknesses. Designed for a wide range of bore and rod diameters.

Housing Dia. (Dh) Shaft Dia. Clearance (Ds) Load (N) Work Height (WH) Free Height Ref. (FH) Number of Waves* Thickness T Section S Spring Rate Ref. N/mm
165 151.38 453.9 3.18 10.41 6 0.76 5.92 64
