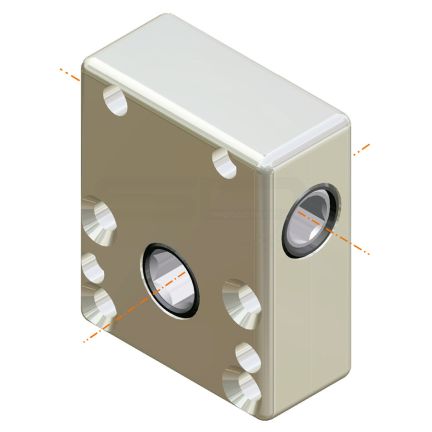

Worm gear 4748.00-00

Product Description

Compact worm gear. The input is on the small side of the gear. The gears is particularly suitable for manual operation.

Special features
Ratio 1:1, 2:1, 2.8:1, 4.33:1, 10:1, 14:1, 15:1
Gear with synthetic friction bearing
Worm and cog wheel made of case hardened steel
Housing made of die-cast zinc
Special model with bronze bearing

Customer specific
On customer request, the gear is also available left-handed.

Ratio Input Output Max. drive torque Max. output torque Self-locking
4.33:1 hex 6 mm hex 6 mm 3 Nm 2 Nm yes
