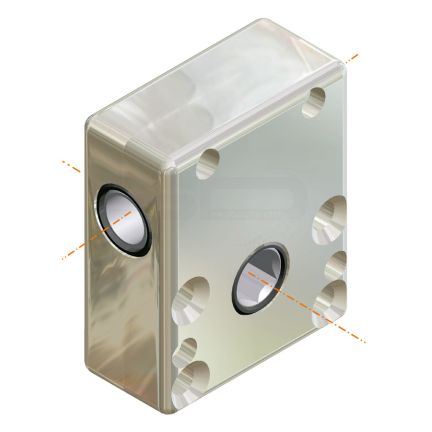

Worm gear 4747 / 4749 / 4751 / 4752 / 4754 / 4755
Product Description
Compact worm gear. The input is on the wide side of the gear. The gears is particularly suitable for manual operation.
Special features
Ratio 1:1, 2.5:1, 3.33:1, 4.33:1, 6:1, 13:1
Gear with synthetic friction bearing
Worm and cog wheel made of case hardened steel
Housing made of die-cast zinc
Special model with bronze bearing
Customer specific
On customer request, the gear is also available left-handed.
| Product Code | Ratio | Input | Output | Max. drive torque | Max. output torque | Self-locking | No. of Packs |
|---|---|---|---|---|---|---|---|
| 4747.00-00 | 4.33:1 | hex 6 mm | hex 6 mm | 3 Nm | 2 Nm | yes | Enquire Now |
| 4749.00-00 | 2.5:1 | hex 6 mm | hex 6 mm | 3 Nm | 2 Nm | no | Enquire Now |
| 4751.00-00 | 1:1 | hex 6 mm | hex 6 mm | 4 Nm | 2 Nm | no | Enquire Now |
| 4752.00-00 | 3.33:1 | hex 6 mm | hex 6 mm | 3 Nm | 2.5 Nm | yes | Enquire Now |
| 4754.00-00 | 6:1 | hex 6 mm | hex 6 mm | 2 Nm | 3 Nm | yes | Enquire Now |
| 4755.00-00 | 13:1 | hex 6 mm | hex 6 mm | 1 Nm | 3 Nm | yes | Enquire Now |
