Worm gear 4751.00-00
Product Description

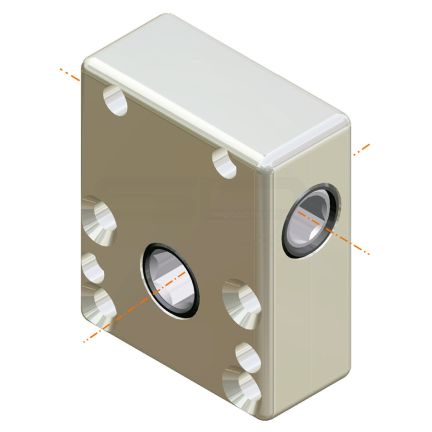

Compact worm gear. The input is on the wide side of the gear. The gears is particularly suitable for manual operation.
Special features
Ratio 1:1, 2.5:1, 3.33:1, 4.33:1, 6:1, 13:1
Gear with synthetic friction bearing
Worm and cog wheel made of case hardened steel
Housing made of die-cast zinc
Special model with bronze bearing
Customer specific
On customer request, the gear is also available left-handed.
| Ratio | Input | Output | Max. drive torque | Max. output torque | Self-locking |
|---|---|---|---|---|---|
| 1:1 | hex 6 mm | hex 6 mm | 4 Nm | 2 Nm | no |
