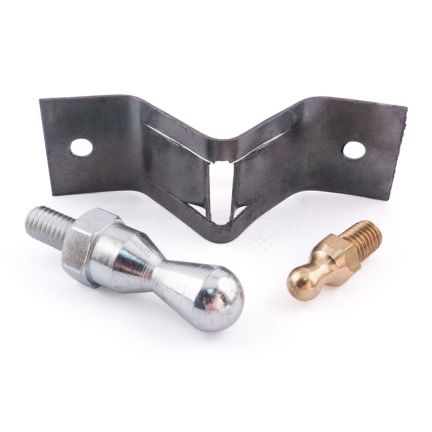

Spring Latches and Stud
Product Description
This range of Latches and Studs are an economical fixing, where the ball stud is kept under firm tension by the arms on the latch, yet allowing easy removal when required.
Material
Spring Steel
Latch
| Product Code | Panel | P | A | B | C | H | T | Matching Ball Stud | Pull Off Kg | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-2108-SC | 0.91 - 1.22 | - | 18 | 16 | 3 | - | 0.56 | BS-3849/2141 | 9.1 | £6.25 | i |
50
|
Enquire Now |
| SL-1657-SC | 0.71 - 4.06 | 38.1 | 50.5 | 17.5 | 15.7 | 3.33 | 0.51 | BS-3845/3846 | 5 | £5.00 | 58730 |
50
|
|
| SL-1682-SC | 0.51 - 1.02 | 19 | 25.4 | 11.2 | 6.8 | 3.35 | 0.46 | BS-3847/3848(4) | 6.4 | £5.50 | 39189 |
50
|
Stud
| Product Code | A | B | C | Thread | Panel Range | D | E | L | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BS-3845-ZP | 20.6 | 9.3 | 12.7 | M5 | 0.71 - 4.06 | 4.7 | 4.4 | 9.4 | £15.75 | 909 |
50
|
|
| BS-3846-ZP | 20.6 | 9.3 | 12.7 | M5 | 0.71 - 4.06 | 4.7 | 8.7 | 9.4 | £13.00 | 11600 |
50
|
|
| BS-3847-BR | 8.1 | 6.3 | 5.59 | M5 | 0.51 - 1.02 (4) | 3.76 | 2.36 | 7.9 | £10.00 | i |
50
|
Enquire Now |
| BS-3848-BR | 8.1 | 6.3 | 5.59 | M3 | 0.51 - 1.02 (4) | 3.76 | 2.36 | 3.6 | £10.00 | 225 |
25
|
