Push On Fixes
Product Description

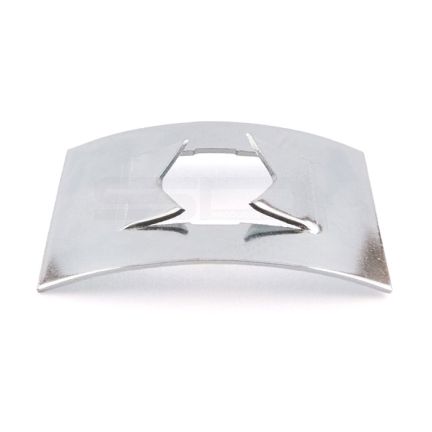

Push on fixes push onto a stud to provide a secure low profile fixing.
Material
CS60-CS70 Carbon Steel, Hardened and Tempered
Finish
Blue/Black, Electro plated Zinc.
Different finishes available on request.
Specials
If the Push On Fix you are looking for is not shown, please enquire to the sales office with the dimensions and the quantity. We stock a wide variety of specials and we can manufacture different sizes if required.
Rectangular Type
| Product Code | P | Stud Diameter | A | B | T | Finish | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-1722-40 | 3.81 | 2.31 - 2.39 | 11.2 | 6.4 | 0.3 | Yellow zinc | £6.99 | 73267 |
100
|
|
| FP-2113-BZP | 3.96 | 2.92 - 3.05 | 12.7 | 7.9 | 0.36 | Zinc plated | £6.99 | 56077 |
100
|
|
| FP-1833-BZP | 3.96 | 3.1 - 3.2 | 12.7 | 7.9 | 0.3 | Zinc plated | £11.00 | 56600 |
100
|
|
| FP-0211-40 | 3.96 | 3.1 - 3.2 | 12.7 | 7.9 | 0.36 | Yellow zinc | £6.99 | 13371 |
100
|
|
| FP-0212-40 | 4.77 | 3.89 - 3.99 | 14.2 | 9.6 | 0.38 | Yellow zinc | £6.99 | 86800 |
100
|
|
| FP-0213-40 | 4.77 | 4.67 - 4.8 | 15.7 | 9.6 | 0.38 | Yellow zinc | £6.99 | 113420 |
100
|
|
| FP-2114-BZP | 4.77 | 4.93 - 5.05 | 15.7 | 9.6 | 0.38 | Zinc plated | £6.99 | 79943 |
100
|
|
| FP-1082-40 | 5.54 | 6.25 - 6.4 | 16 | 11.2 | 0.3 | Yellow zinc | £6.99 | 8150 |
100
|
|
| FP-1082-BZP | 5.54 | 6.25 - 6.4 | 16 | 11.2 | 0.3 | Zinc plated | £6.99 | 82650 |
100
|
|
| FP-0215-BZP | 5.54 | 6.25 - 6.4 | 19.1 | 12.7 | 0.41 | Zinc plated | £6.99 | 19345 |
100
|
|
| FP-0216-BZP | 6.35 | 7.85 - 8 | 22.1 | 16 | 0.41 | Zinc plated | £6.99 | 35780 |
100
|
