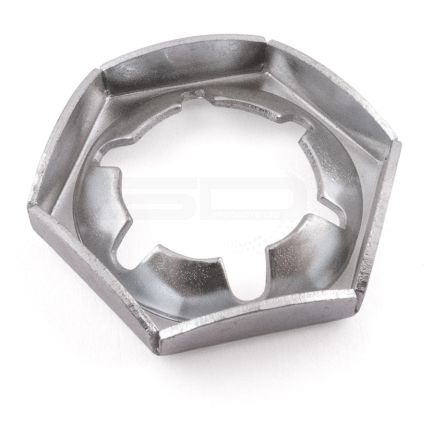

Lock Nuts
Product Description
Lock Nuts are a low profile fixing providing a sound vibration proof locking action with minimum space requirements.
Material
Austempered Carbon Steel
Finish
Phosphate Paint Black/Hot Dipped Galvanised.
Specials
Further sizes are available. In particular, a varied range of imperial threads are available.
| Product Code | Thread | B | C | Finish | No. of Packs |
|---|---|---|---|---|---|
| PN-004-ZC | M4 | 7 | 2.3 | Zinc and clear | Enquire Now |
| PN-005-ZC | M5 | 8 | 2.5 | Zinc and clear | Enquire Now |
| PN-006-ZC | M6 | 10 | 8.1 | Zinc and clear | Enquire Now |
| PN-008-ZP | M8 | 13 | 3.5 | Zinc plated | Enquire Now |
| PN-010-ZP | M10 | 17 | 4 | Zinc plated | Enquire Now |
| PN-014-ZP | M14 | 22 | 5 | Zinc plated | Enquire Now |
| PN-016-BLK | M16 | 24 | 5 | Black | Enquire Now |
| PN-016-ZP | M16 | 24 | 5 | Zinc plated | Enquire Now |
| PN-018-ZC | M18 | 27 | 5.5 | Zinc and clear | Enquire Now |
| PN-020-ZP | M20 | 30 | 6 | Zinc plated | Enquire Now |
| PN-024-ZC | M24 | 36 | 7 | Zinc and clear | Enquire Now |
| PN-030-ZC | M30 | 46 | 8 | Zinc and clear | Enquire Now |
| PN-036-ZC | M36 | 55 | 9 | Zinc and clear | Enquire Now |
| PN-042-ZC | M42 | 65 | 11 | Zinc and clear | Enquire Now |
