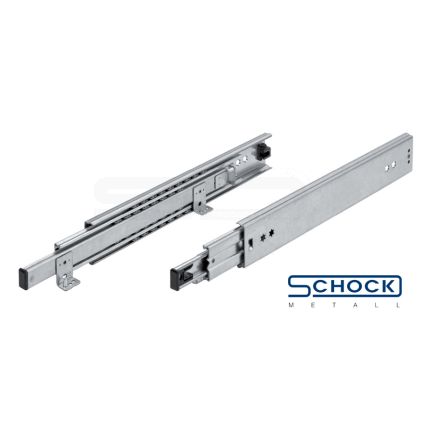

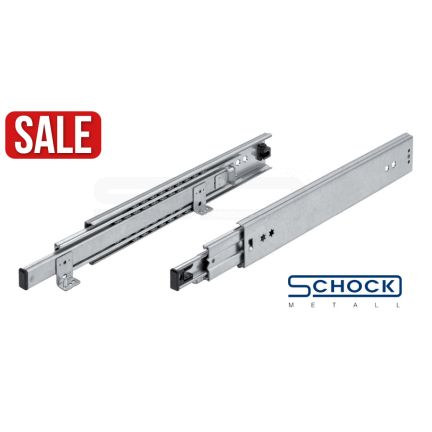

For illustration purposes only

Product Description

Load capacity up to 100 kg.
Travel 100% +.
Hold-in detent.

Materials and finishes
Slide rails: hot-dip galvanized steel
Ball cages: pre-zinced steel
Balls: hardened carbon steel

Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +80°C

Download our project form

Download Schock Standard Program catalogue

Schock logo

0 5 0

Product Code	Length	Travel	Horizontal Load Capacity Per Pair (kg) (at 100.000 cycles)	Load Capacity Per Pair (kg) (at 100.000 cycles)	A	B	C	Weight (kg / pair)	Qty (In Stock)	Pack Size	Price (Per Pack)
038-17870	300	350	16	50	128	104	160	1.67	46	1 Pair	£33.41
038-17871	350	400	16	60	128	152	256	1.96	95	1 Pair	£34.51
038-17872	400	450	16	65	160	168	256	2.28	N/A	1 Pair	£35.41	Enquire Now
038-17873	450	500	16	70	160	224	256	2.57	104	1 Pair	£36.14
038-17874	500	550	16	75	224	208	384	2.91	102	1 Pair	£36.87
038-17875	550	600	16	75	224	256	384	3.2	N/A	1 Pair	£37.84	Enquire Now
038-17876	600	650	16	80	288	240	384	3.45	N/A	1 Pair	£38.93	Enquire Now
038-17877	650	700	16	80	288	288	384	3.75	N/A	1 Pair	£40.15	Enquire Now
038-17878	700	750	16	80	320	312	384	4.07	N/A	1 Pair	£41.00	Enquire Now
038-17879	750	800	16	80	320	360	384	4.36	N/A	1 Pair	£42.71	Enquire Now
