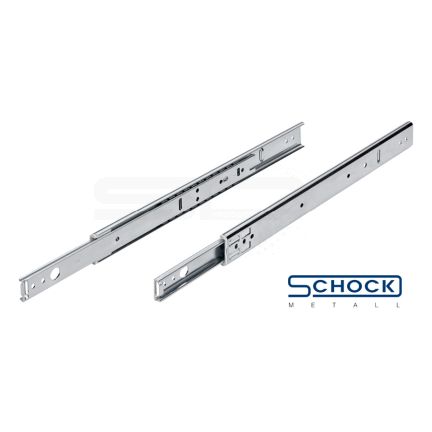

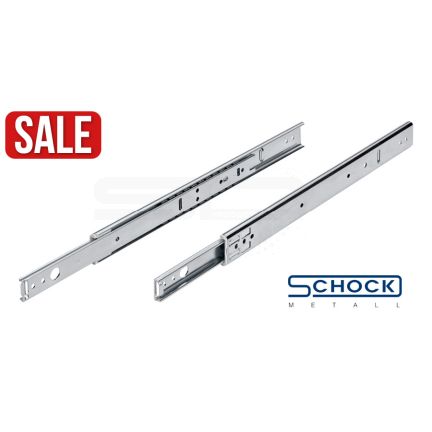

Partial Extension Series 016

simple_product
For illustration purposes only

Product Description

Load capacity up to 65 kg.
Detachable inner rail.
Hold-out detent.
Positive stop in closed position.

Materials and finishes
Slide rails: zinc electroplated and blue passivated steel
Ball cages: pre-zinced steel
Balls: hardened carbon steel

Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +80°C

Download our project form Project Form

Download Schock Standard Program catalogue Project Form

Schock logo

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 12 + 8 =

* Required Fields

  • Standard next day delivery - £10

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Product Code LengthTravelLoad Capacity Per Pair (kg) (at 100.000 cycles)ABCDEFGWeight (kg / pair) Qty (In Stock) Pack Size Price (Per Pack)
016-06330Z 30519654-215.9254-149.2260.32730.6 82 1 Pair £25.54
016-06331Z 33022150-241.3279.4-174.6285.7298.40.66 N/A 1 Pair £26.03 Enquire Now
016-06332Z 35624746-266.7304.8-200311.1323.80.71 N/A 1 Pair £26.96 Enquire Now
016-06333Z 40629740-317.5355.6-250.8361.9374.60.82 N/A 1 Pair £25.48 Enquire Now
016-06334Z 45732349203.2342.9406.4212.7301.6412.7425.40.92 N/A 1 Pair £27.42 Enquire Now
016-06335Z 50837444228.6393.7457.2238.1352.4463.6476.31.03 N/A 1 Pair £27.89 Enquire Now
016-06336Z 53340041241.3419.1482.6250.8377.8488.9501.61.09 N/A 1 Pair £28.35 Enquire Now
016-06337Z 55940048254419.1508263.5403.2514.35271.14 N/A 1 Pair £28.82 Enquire Now
016-06338Z 61042556279.4444.5558.8288.9454565.1577.81.24 N/A 1 Pair £29.29 Enquire Now
016-06339Z 66047650304.8495.3609.6314.3504.8615.9628.61.34 N/A 1 Pair £29.75 Enquire Now
