DC-Motor drive 3143.00-V01A07KSMS

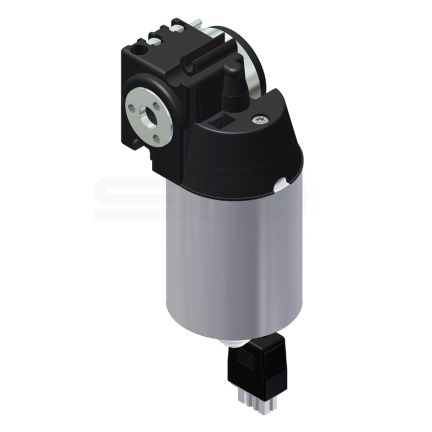

Powerful 24 V DC motor with worm gear and through going hexagon socket. Although the drive was developed for ergonomic table applications, it can be used in many other fields. A cable with AMP plug and an integrated Hall sensor allows easy and secure control of the entire system.
Special features
> Two integrated Hall sensors for measurement of the revolutions and direction of rotation
> Through going hexagon socket in wrench widths 6 mm, 7 mm, 9 mm
> Available as “power package” or as “high speed” variant
> 1200 mm motor cable with connector included
> Good self-locking properties
> Can be combined with all Ketterer spindle systems
Technical notes
> The drive working range (nominal torque) is determined for a service life of 10,000 double strokes
> Through the controller* the system is regulated such that the speed in the entire drive working range is kept as constant as possible
> By using a controller with a short-circuit brake the holding torque position of the drive can be increased
* in connection with LogicData control box Compact-3
** see diagramm
Motor | Sensor/Power supply | Input | Electric current | Duty cycle | Idle running speed | Max. drive torque | Protection class |
---|---|---|---|---|---|---|---|
DC Motor 24 V | Hall/5 V DC/0.3A | inside hex 7 mm | 3.9 A at 5 Nm | 20% (at 5 min.) | 115 rpm (24V) 120 rpm* | 5 Nm** | IP30 |
