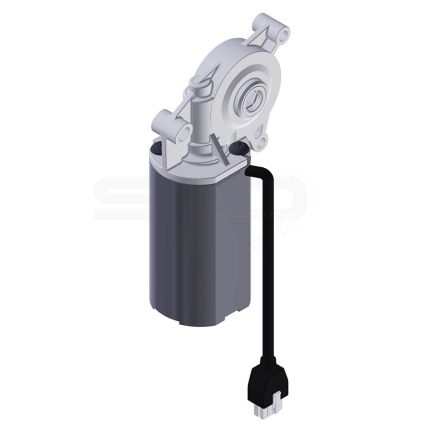

Motor drive 3133.00
A compact 24 V DC motor with worm gear and continuous hexagon. The drive was developed for ergonomic bench applications, but is also used in many other areas.
A cable with a standard plug and integrated Hall sensors enable the simple and reliable control of the complete system.
Special features
Two integrated Hall sensors for detecting the number of revolutions completed and the direction of rotation.
Continuous hexagon socket in various widths across flats.
High torque with minimum size.
Good self-locking properties.
Low noise.
Combinable with all Ketterer spindle systems.
Note
The motor must be operated in the preferred installation position in order to ensure reliable operation.
* Rated torque with standard DIN EN 527, with 10.000 doublestrokes determined
| Product Code | Motor | Sensor/Power supply | Duty cycle with idle running | Duty cycle with 3.5 Nm* | Rated torque* | Short-term peak torque (< 1 sec) | Input | Idle running speed | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| 3133.00-0016 | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 20 sec ON, 4 min. OFF | 3.5 Nm | 5 Nm | inner hex 6 mm | 120 rpm (24 V) | IP30 | Enquire Now |
| 3133.00-0017 | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 20 sec ON, 4 min. OFF | 3.5 Nm | 5 Nm | inner hex 7 mm | 120 rpm (24 V) | IP30 | Enquire Now |
| 3133.00-0011 | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 20 sec ON, 4 min. OFF | 3.5 Nm | 5 Nm | inner hex 9 mm | 120 rpm (24 V) | IP30 | Enquire Now |
