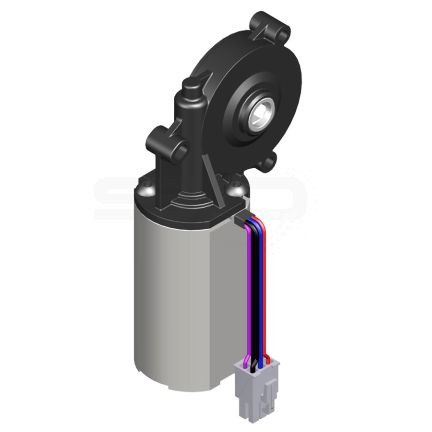

Motor drive 3133.48
Product Description
Motor drive with through-going hexagon socket.
24V-DC motor with worm gear.
Special features
Motor with integrated position measuring system. Simple mounting. Applicable with all Ketterer spindle systems. Simple upgrade from manual to motorized solution.
Very powerfull
High braking torque
Compact design
Customer specific
Compact motor drive for customer specific applications. Simply adaptable by hexagon socket and three separate fastening bores.
* in combination with LogicData control box Compact-3
| Product Code | Motor | Sensor/Power supply | Input | Duty cycle | Idle running speed | Max. drive torque | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| 3133.48-0001 | DC Motor 24 V | Hall/5 V DC/0.3 A | inner hex 9 mm | 20% (at 5 Min.) | 120 rpm (24 V) 130 rpm * | 5 Nm | IP30 | Enquire Now |
| 3133.48-0008 | DC Motor 24 V | Hall/5 V DC/0.3 A | inner hex 6 mm | 20% (at 5 Min.) | 120 rpm (24 V) 130 rpm * | 5 Nm | IP30 | Enquire Now |
