Lifting unit for cupboard systems 4644.00-0000
Product Description

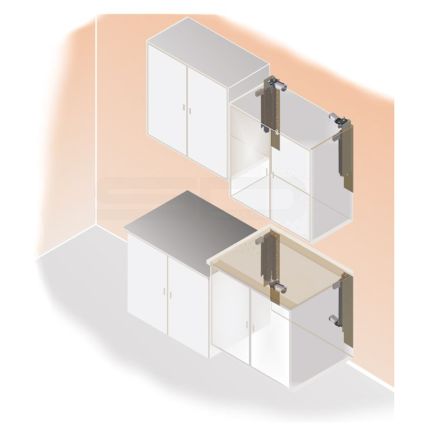

Lifting unit for stepless height adjustment of cupboard systems particularly suitable for cabinets and wall units.
Special features
At cabinet depth of max. 600 mm: load (static) max. 275 kg
At cabinet depth of max. 600 mm: load (dynamic) max. 200 kg
Lifting speed: 26 mm per second
310 mm stroke
Simple assembly (see assembly instructions)
Customer specific
Safety shut-down by means of strain gauges available.
Additional technical data
| Sensor/Power supply | Duty cycle | Stroke max. | Movement speed | Drive motor | Max. dynamic load | Max. static load | Protection class |
|---|---|---|---|---|---|---|---|
| Hall/5 V DC/0.3 A | 20% (at 5 min.) | 310 mm | 26 mm/s | DC Motor 24 V | 2000 N | 2750 N | IP30 |
