Ket Screen Lift Large 4701
Product Description

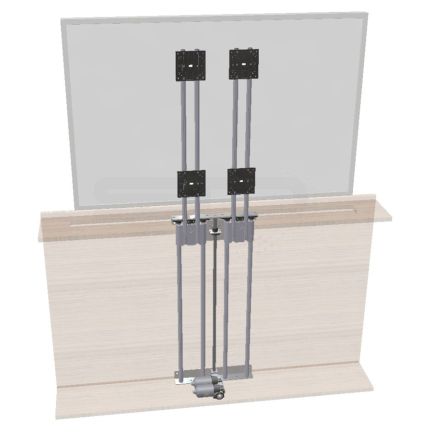

Cost-efficient, compact lifting system for screens up to 50” and weights up to 70 kg.
Special features
System with high lifting speed. Simple installation. Very low noise level allows applications in noise sensitive areas.
Customer specific
The system can be supplied with any stroke up to 1100 mm even for single piece deliveries.
Safety information
Anti-pinch system can be connected.
Additional technical data
| Product Code | Type | Movement speed | Stroke | Max. load | Max. screen size | Retracted length | No. of Packs |
|---|---|---|---|---|---|---|---|
| 4701.00-V12HXXXX | Standard | 90 mm/s | customer specification (max. 1100 mm) | 300 N | 50” | Stroke+142 mm | Enquire Now |
| 4701.00-V11HXXXX | High Load | 90 mm/s | customer specification (max. 1100 mm) | 700 N | 50” | Stroke+142 mm | Enquire Now |
