Ket-Flex Wide Lift 4701

simple_product

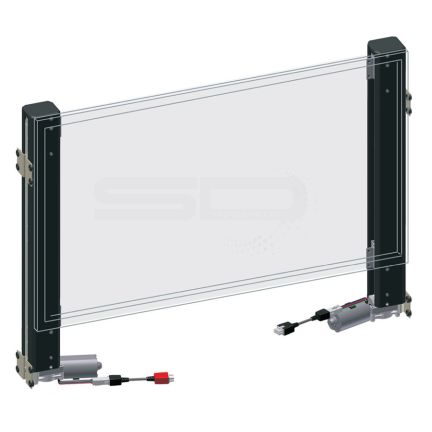

For illustration purposes only

Product Description

This lift unit is extremely narrow and versatile, can be used with any width, and will raise a load of up to 80 kg.

Special features
Its extremely narrow dimensions mean that this lift is suitable for very narrow screens. The two units are mechanically independent from one another, and therefore any width can be achieved. It has attachment points on either side that can be used to mount it. The telescopic unit gives you the best possible ratio of stroke to installation dimension. We offer a choice of two strokes, up to 537 mm or up to 750 mm. The noise level emitted by the unit is minimal, so it is suitable for use in noise-sensitive areas. The sides of the guide rails are covered, and it is thus suitable for use with valuable items of furniture.

Customer specific
We happily supply any number, even one single unit. The specified stroke can be restricted by programming the controller. If you order 200 or more units, then it is even possible to produce different installation lengths.

Safety information
Pinch points must be avoided by ensuring that the installation situation for the lift is appropriately designed.

Ketterer logo

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 12 + 13 =

* Required Fields

  • Standard next day delivery - £10

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Product Code Movement speedStrokeMin. retracted lengthMax. loadType Qty (In Stock) Pack Size Price (Per Pack)
4701.00-3200 38 mm/s537 mm604 mm800 Nshort N/A - N/A Enquire Now
4701.00-3100 38 mm/s750 mm844 mm800 Nlong N/A - N/A Enquire Now
