Knurled Knock-in Inserts
Product Description

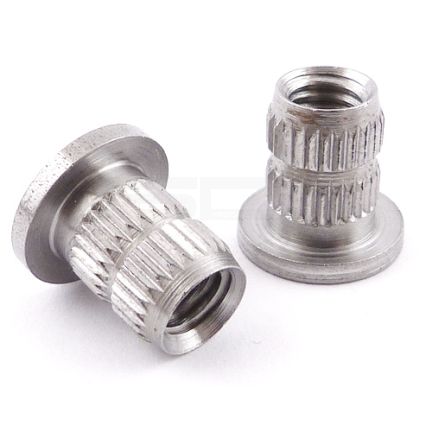

Knock-in Insert with its knurled shank is driven into the wood. The board is attached from above with a connector bolt.
| Product Code | Thread | D | D1 | L | No. of Packs |
|---|---|---|---|---|---|
| IK-4050-SC | M4 | 5.5 | 8 | 5.5 | Enquire Now |
| IK-3080-SC | M3 | 5.5 | 8 | 8 | Enquire Now |
| IK-4080-SC | M4 | 5.5 | 8 | 8 | Enquire Now |
| IK-5060-SC | M5 | 6.5 | 10 | 6.6 | Enquire Now |
| IK-5010-SC | M5 | 6.5 | 10 | 10 | Enquire Now |
| IK-6070-SC | M6 | 8.5 | 12 | 7.7 | Enquire Now |
| IK-6010-SC | M6 | 8.5 | 12 | 12 | Enquire Now |
| IK-8010-SC | M8 | 10.5 | 15 | 12 | Enquire Now |
| IK-1010-SC | M10 | 12.5 | 18.5 | 12 | Enquire Now |
| IK-1012-SC | M10 | 12.5 | 18 | 12 | Enquire Now |
