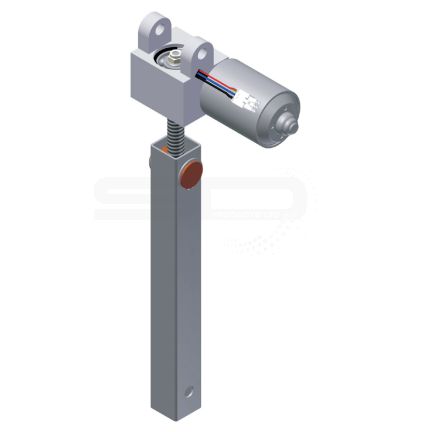

Electric spindle drive 4642.00-V01EXXXHXXX

Product Description

Motorized solution for sit-stand workplace. Stepless height adjustment to customer specific travel distance.

Special features
Simple mounting, integrated distance of travel output. Single telescopic function. Synchronization with up multiple actuators.

Customer specific
As a result of the drive's modular structure, special customer requirements can be met. The drive can be supplied with different spindle lengths and different spindle pitches. Installation length and stroke are customizable to customer preferences.

Caution
Please take into account that depending on the spindle pitch, the system could back-drive.

* in combination with LogicData control box Compact-3
** further type of spindles on request

Motor Sensor/Power supply Duty cycle Idle running speed Stroke max. Type of spindle Max. drive torque Max. compression/pull Movement speed Protection class
DC Motor 18 V Hall/5 V DC/0.3 A 20% (at 5 min.) 100 rpm (24 V), 150 rpm * retracted length -135 mm Tr16x8P4 RH ** 5 Nm 1500 N 20 mm/s * IP30
