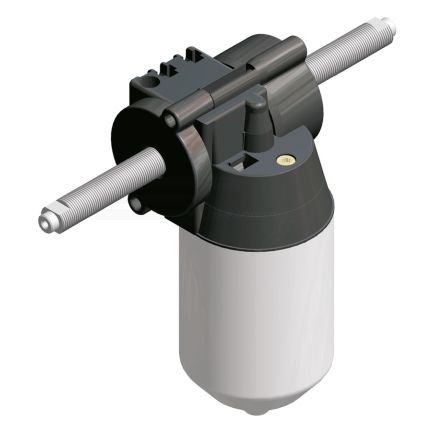

Electric linear drive with spindle 3146
Product Description
Direct current motor with worm gear and thoroughgoing not rotating spindle for push and pull movements.
Special features
Motor drive with integrated position measuring system.
Customer specific
Compact motor drive for customer specific applications. Spindle pitch can be modified to customer requirements.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
* in combination with LogicData control box Compact-3
| Product Code | Motor | Sensor/Power supply | Duty cycle | Idle running speed | Type of spindle | Max. drive torque | Movement speed | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 3146 | DC Motor 18 V | Hall/5 V DC/0.3A | 20% (at 5 min.) | 90 rpm (24 V) 130 rpm * | Tr12x3 RH | 1200 N | 4 mm/s * | IP30 | Enquire Now |
