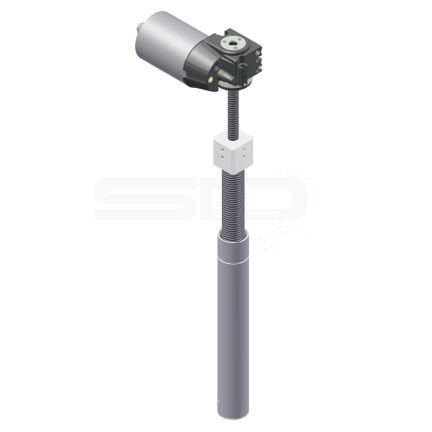

Electric synchronous telescopic drive 4114
Product Description
Electric motor solution for the individual sit-stand workplace. Smooth running stepless height adjustment.
Special features
Simple mounting, integrated position measuring system, twice telescopable. Electronic synchronisation with up to 24 actuators. Synchronous movement of the spindle units, double stroke speed.
Customer specific
Because of the modular design it is possible to meet special customer requirements even for small quantities.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
* in combination with LogicData control box Compact-3
** further type of spindles on request
Additional technical data
| Product Code | Motor | Sensor/Power supply | Duty cycle | Idle running speed | Stroke max. | Type of spindle | Max. drive torque | Max. lifting force | Movement speed | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4114 | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 100 rpm (24 V) 150 rpm * | (retracted length -170 mm) x2 | SG25x12P6 RH ** and SG12x12P4 RH | 5 Nm | 800 N | 50 mm/s * | IP30 | Enquire Now |
