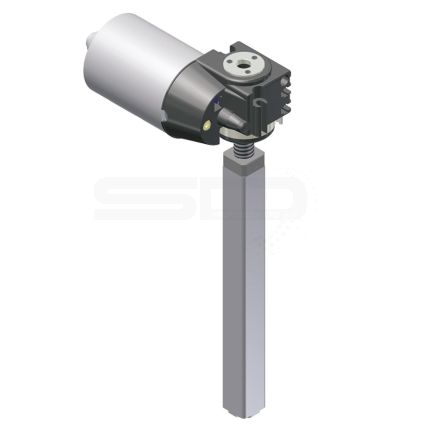

Electric spindle drive 4640
Product Description
Motorized solution for sit-stand workplace. Stepless height adjustment to customer specific travel distance.
Special features
Simple mounting, integrated distance of travel output. Single telescopic function. Synchronization with up to 26 actuators.
Customer specific
As a result of the drive's modular structure, special customer requirements can be met. The drive can be supplied with different spindle lengths and different spindle pitches.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
* in combination with LogicData control box Compact-3
** further type of spindles on request
| Product Code | Motor | Sensor/Power supply | Duty cycle | Idle running speed | Stroke max. | Type of spindle | Max. drive torque | Max. lifting force | Movement speed | Protection class | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4640.00-V01EXXXHXXX | DC Motor 24 V | Hall/5 V DC/0.3 A | 20% (at 5 min.) | 100 rpm (24 V) 150 rpm * | retracted length -107 mm | SG14x16P4 RH ** | 5 Nm | 800 N | 40 mm/s * | IP30 | Enquire Now |
