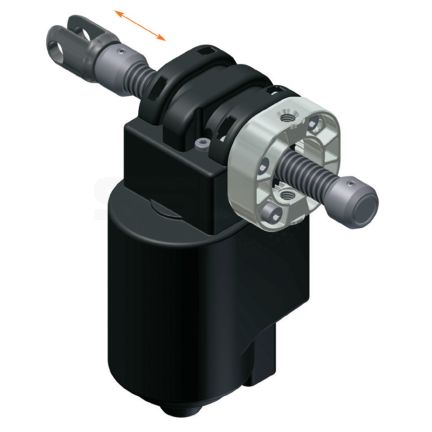

Electric linear actuator with spindle 4643.00-V01HXXXX

Product Description

Powerful motorized drive unit with push-pull spindle and electromechanical end-switches. Stroke to customer demands.

Special features
By simplified control function, an additional distance measuring system is not required.

Very powerful
For very high holding torques
Simple installation
Two electromechanical end-switches.

Customer specific
Compact actuator for customer specific applications. Can be adapted easily by fork crown and mounting adapter flange.

* in combination with LogicData control box Compact-3

Motor Sensor/Power supply Duty cycle Type of spindle Max. pressure force Movement speed Protection class
DC Motor 18 V Hall/5 V DC/0.3 A 20% (at 5 min.) Tr14x3 RH 3000 N 4 mm/s * IP30
