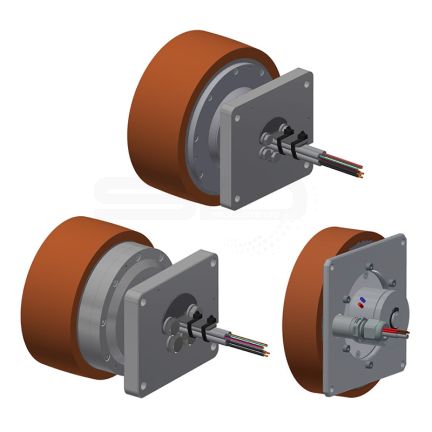

BLDC wheel hub motor i-Wheel

simple_product
For illustration purposes only

Product Description

Direct drive - Benefits in a nutshell
> No gearbox – no wear
> Much longer service life compared to conventional drive technology with a gear stage
> Excellent running properties with barely perceptible noise level
> Ultra-compact with extremely high power density
> Possible to replace the wheel coating at our premises

Safety first
> Rotational control system using diverse redundancy
> PL-d safety level achievable with suitable controller
> Safe production processes, as there are no risks of contamination from gear oils and greases (no gearbox)

The choice is yours - we implement it
> Encoder optional: BiSS, SSI, TTL incremental (various resolutions)
> Brake optional: permanent magnetic brake or spring-operated brake
> Can be combined with various controllers
> Customer-specifi c mechanical integration and system connection

Additional technical data i-Wheel

For prices and availability contact our sales team on 01623 655 265.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 13 + 14 =

* Required Fields

  • Standard next day delivery - £6.90

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Product Code Idle running speedNo-load currentAchievable max. speedRated voltageRated currentRated torqueRated speedShaft power (output)Max. speed at rated torqueMax. efficiencyIdle speedStarting current at idle speedTorque constantSpeed constantTerminal resistance (phase to phase)Terminal inductanceRotor inertiaMax. radial axle load FMax. axial axle load FNumber of magnets polesEncoder type in standardEncoder resolutionMaterial of the coatingInterconnection of the motor Qty (In Stock) Pack Size Price (Per Pack)
3213.00-1XXX 975 rpm0.5 Aup to 27 km/h48 VDC5 A3 Nm530 rpm165 W15 km/h86%5.4 Nm12 A0.6 Nm/A11 min⁻¹ V⁻¹0.65 Ohm3.7 mH2900 kgmm²800 N200 N32Digital Halls + TTL magnetic incremental AB65536 cprVulkollan 92 Shore AL63S4 N/A - N/A Enquire Now
3213.00-2XXX 450 rpm0.3 Aup to 14 km/h48 VDC4.5 A5 Nm316 rpm165 W10 km/h82%19.7 Nm35 A1.25 Nm/A9.4 min⁻¹ V⁻¹1.05 Ohm7 mH14500 kgmm²2500 N1250 N32Digital Halls + TTL magnetic incremental ABZ4096 cprPU-Wheel: 92° ±3° Shore AL63S4 N/A - N/A Enquire Now
3213.00-3XXX 225 rpm0.4 Aup to 7 km/h48 VDC4.7 A10 Nm154 rpm161 W5 km/h78%34 Nm30 A2.1 Nm/A3.2 min⁻¹ V⁻¹1.75 Ohm15 mH26850 kgmm²7500 N2500 N32Digital Halls + TTL magnetic incremental ABZ4096 cprPU-Rad: 92° ±3° Shore AL63S4 N/A - N/A Enquire Now
