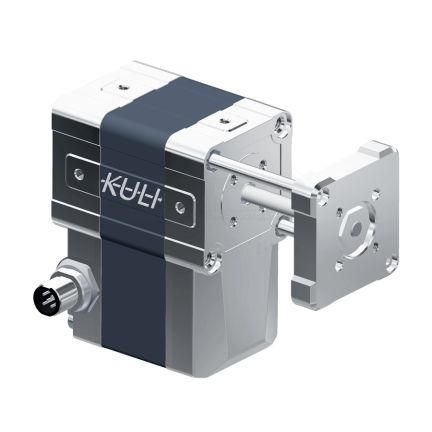

KuLi - Electrical short stroke actuator
Compact and fast electrically operated linear drive. The drive is particularly suitable for use in automation and conveying technology, where it can replace pneumatic cylinders.
Special features
> Compact design:
We achieve a stroke of 40 mm with a housing length of just 67 mm
> Powerful and dynamic:
Thrust/tensile forces up to 300 N, speed up to 445 mm/s
> Easy parameterization:
User friendly software and connect-box
> Integrated control:
Configuration and teach-in of the system without expert knowledge
> Maintenance-free
Variant key
The KuLi short-stroke linear drive is available in different variants: A variant with an anti-twist device and a variant with a thrust rod. The mechanical connection as well as the plug position can be selected to suit the application. Stroke speed, stroke force and stroke length are individually adjustable.
*One cycle = extend-pause-retract-pause
Additional technical data
For prices and availability contact our sales team on 01623 655 265.
| Product Code | Stroke length / Max. travel path | Spindle pitch | Max. thrust-/tensile forces | Max. speed load-free | Max. holding force (static) | Supply voltage | Max. current consumption | Power consumption | Resolution of the encoder system | Repeatability | IP protection class | Ambient temperature | Life time without load | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KuLi | 40 mm | 6 mm | 300 N | 445 mm/s | 500 N | 24 V DC + 10 %/ -25% | 10 A | 240 W | +/- 0.15 mm | +/- 0.2 mm | IP 54 (thrust rod only), IP 24 (with anti-twist device) | +5 to +42° C | 20 Mio. Cycles* | Enquire Now |
