3200 – t-Rex-I-44-89

Product Description

14-pol BLDC engine with high-performance neodymium magnets, also equipped with two analog hall sensors to detect the rotor position. The electrical connections are designed as a plugin system, while additional power electronics are required to operate the motor.

Special features

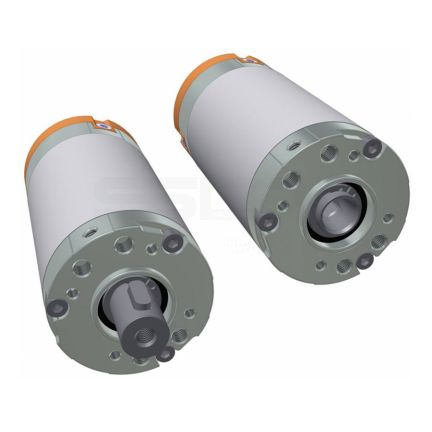

The engine is designed for high torque and is characterized by its excellent overload resistance. Optimal as a direct-drive system or a generator for gearless applications. One model has a hollow shaft. That gives you the chance to bring some media (liquid, air, ...) through the motor to the front side. The second model is equipped with a shaft, with the chance to adapt the movement on both sides of the motor.

Customer specific
Engines can be manufactured with other windings on request. A precise design and production of the engine at a given operating point is also possible.

Product Code Voltage range Rated voltage Rated current Rated torque Rated speed Rated power (output) Max. efficiency Idle speed Starting torque No. of Packs
3200.00-0002/-0003 12 V to 48 V 36 V 2.5 A 0.55 Nm 1100 rpm 65 W 74% 1350 rpm 2.1 Nm Enquire Now
