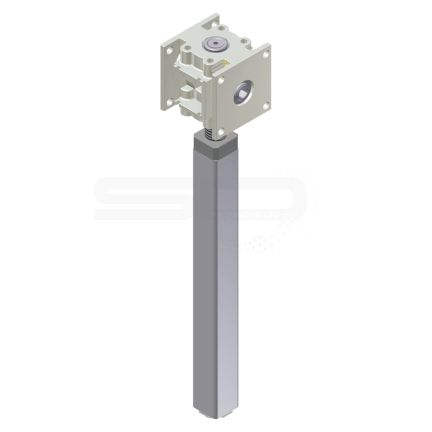

Bevel gear with spindle and support tube 3043

Product Description

Gear for stepless height adjustment for sit-sit- or sit-stand workplaces. The gear is adapted for both manual and motorized height adjustment.

Special features
Ratio 1:1
Housing made of die-cast zinc
Hardened, bearing seated steel gear cogs
Particularly suitable for motorized solutions
Up to two inputs are possible

Customer specific
Because of its modular design it is possible to meet special customer requirements even for small quantities. The gear is available in various spindle lengths and pitches.

Caution
Please take into account that depending on the spindle pitch, the system could back-drive.

* in connection with motor drive “KTS 3143”
** System self-locking in connection with motor drive “KTS 3143”

Ratio Input Stroke max. Type of spindle Number of inputs Max. drive torque Max. lifting force
1:1 hex 7 mm retracted length -105 mm SG12x12P4 RH ** counter-clockwise max. 2 6 Nm 1200 N
