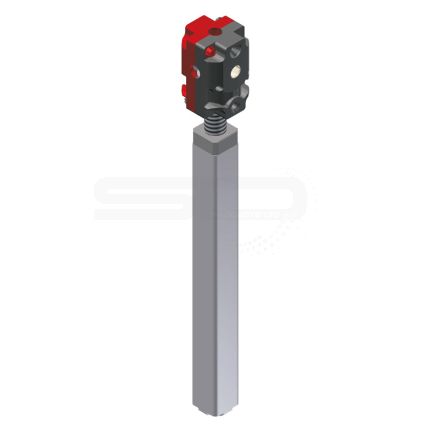

Bevel gear 3045.00-V03EXXXHXXX

Product Description

Gear for stepless height adjustment for sit-sit or sit-stand workplaces. The gear is adapted for both, manual and motorized height adjustment.

Special features
Ratio 1:1 or 1:2
Housing made of reinforced glass-fibre
Case hardened toothed wheels of steel, reinforced tooth system.
Particularly suitable for the driving with motor system KTS 3143.

Customer specific
The gear can be supplied with various spindle lengths and spindle pitches.

Caution
Please take into account that depending on the spindle pitch, the system could back-drive.

* in connection with motor drive “KTS 3143”
** System self-locking in connection with motor drive “KTS 3143”

Ratio Input Stroke max. Type of spindle Max. drive torque Max. lifting force
1:2 hex 7 mm retracted length -110 mm Tr 14x3 RH 6 Nm 1200 N
