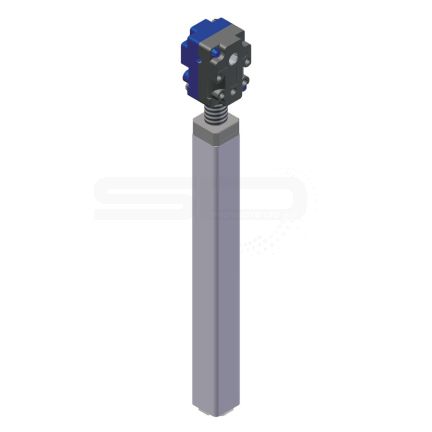

Bevel gear 3039
Product Description
This gear unit is designed to be used for many different mechanical drive solutions. Applications of adjustment for: steppless height-adjustable desks, umbrellas, adjustable windows, partition walls, etc. and any kind of linear adjustments in the industrial machinery industry.
Special features
Ratio 1:1
Housing made of reinforced glass-fibre
Case hardened toothed wheels of steel
Reinforced tooth system
Ball bearing output wheels
Particularly suitable for the driving with Ketterer motors
Customer specific
The gear can be supplied with various spindle lengths and spindle pitches.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
* in combination with motor drive “KTS 3143”
Mounting distance: 355mm, Stroke: 255mm
| Product Code | Ratio | Input | Stroke max. | Type of spindle | Max. drive torque | Max. lifting force | Pricei | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 3039.00-V01E355H255 | 01:01 | hex 6 mm | retracted length - 99 mm | Tr 14x3 RH | 4 Nm | 1200 N | £46.00 |
1
|
Enquire Now |
Customer Specific
| Product Code | Ratio | Input | Stroke max. | Type of spindle | Max. drive torque | Max. lifting force | Pricei | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| 3039.00-V01EXXXHXXX | 1:1 | hex 6 mm | retracted length - 99 mm | Tr 14x3 RH | 4 Nm | 1200 N | i | - | Enquire Now |
| 3039.00-V02EXXXHXXX | 1:1 | hex 6 mm | retracted length - 99 mm | SG 14x16P4 RH | 4 Nm | 800 N* | i | - | Enquire Now |
