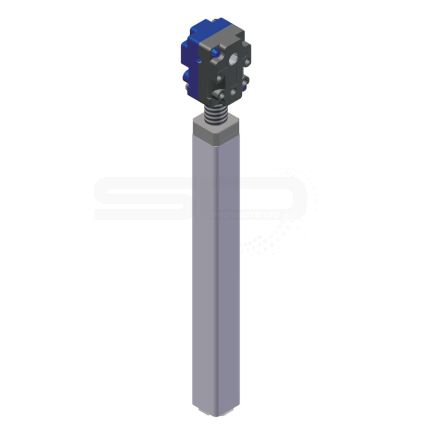

Bevel gear 3039.00-V01E355H255

Product Description

This gear unit is designed to be used for many different mechanical drive solutions. Applications of adjustment for: steppless height-adjustable desks, umbrellas, adjustable windows, partition walls, etc. and any kind of linear adjustments in the industrial machinery industry.

Special features
Ratio 1:1
Housing made of reinforced glass-fibre
Case hardened toothed wheels of steel
Reinforced tooth system
Ball bearing output wheels
Particularly suitable for the driving with Ketterer motors

Customer specific
The gear can be supplied with various spindle lengths and spindle pitches.

Caution
Please take into account that depending on the spindle pitch, the system could back-drive.

* in combination with motor drive “KTS 3143”

Ratio Input Stroke max. Type of spindle Max. drive torque Max. lifting force
01:01 hex 6 mm retracted length - 99 mm Tr 14x3 RH 4 Nm 1200 N
