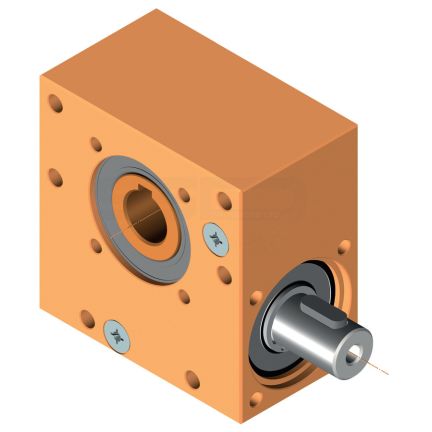

Worm gear 2010.00-V02R40
Product Description
Worm gear for universal applications
Centre distance 20 mm
Compact design
Outer dimensions 60x60x35 mm
7 ratios of 13:1 to 65:1
Aluminium housing, anodized
Maintenance-free
Special features
Smallest dimensions for max. torque
Smooth and silent running
Simple screw mounting
Customer specific
Other ratios are available on request.
*maximum radial force at Fa=0
**maximum axial force at Fr=0
Ratio i | Self locking static | Max. drive torque M in Nm | Max. output torque M in Nm | Speed range n in rpm | Radial force* Fr in N | Axial force** Fa in N | Degree of efficiency in % | Weight in g |
---|---|---|---|---|---|---|---|---|
40 : 1 | yes | 0.4/0.3/0.3 | 5.5/4.8/4.0 | 100/500/1000 | 400 | 400 | 39 | 426 |
