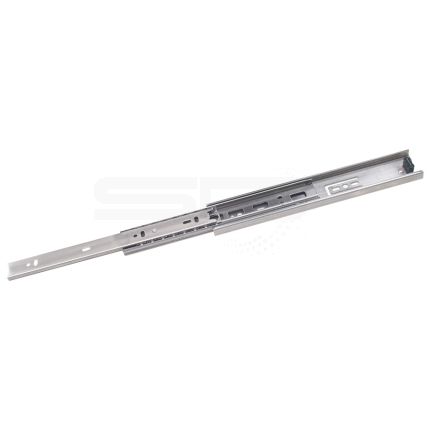

Sugatsune Stainless Steel Full Extension Slide - 40-54kg Load Capacity
Product Description
Features
> Full extension.
> Front disconnect.
> Positive stop.
> Hold-in detent.
> Non-handed.
Recommended Screws
M4 or #8 binding, or pan head screws.
Material
Stainless Steel (SUS304)
| Product Code | Load Capacity | Extension | Sizes | G | Weight | D | A | B | E | H | C | I | F | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDS-ST-F54-200 | 529 N / 54 kg | 100% | 200mm | 142 | 447 g | - | - | - | - | - | - | - | - | Enquire Now |
| SDS-ST-F52-250 | 510 N / 52 kg | 100% | 250mm | 192 | 603 g | 60.5 | - | - | - | - | - | - | - | Enquire Now |
| SDS-ST-F50-300 | 490 N / 50 kg | 100% | 300mm | 242 | 754 g | 60.5 | 96 | - | - | - | - | - | - | Enquire Now |
| SDS-ST-F49-350 | 480 N / 49 kg | 100% | 350mm | 292 | 919 g | 60.5 | 96 | - | - | - | - | - | - | Enquire Now |
| SDS-ST-F47-400 | 461 N / 47 kg | 100% | 400mm | 342 | 1064 g | 60.5 | 96 | 96 | 67.5 | - | - | - | - | Enquire Now |
| SDS-ST-F46-450 | 451 N / 46 kg | 100% | 450mm | 392 | 1228 g | 60.5 | 96 | 128 | 67.5 | 72 | - | - | - | Enquire Now |
| SDS-ST-F44-500 | 431 N / 44 kg | 100% | 500mm | 442 | 1373 g | 60.5 | 96 | 192 | 67.5 | 122 | - | - | - | Enquire Now |
| SDS-ST-F43-550 | 421 N / 43 kg | 100% | 550mm | 492 | 1528 g | 60.5 | 96 | 128 | 67.5 | 76 | 96 | 96 | - | Enquire Now |
| SDS-ST-F42-600 | 412 N / 42 kg | 100% | 600mm | 542 | 1687 g | 60.5 | 96 | 128 | 67.5 | 126 | 128 | - | 96 | Enquire Now |
| SDS-ST-F41-650 | 402 N / 41 kg | 100% | 650mm | 592 | 1854 g | 60.5 | 96 | 128 | 67.5 | 48 | 192 | 128 | 96 | Enquire Now |
| SDS-ST-F40-700 | 392 N / 40 kg | 100% | 700mm | 642 | 2020 g | 60.5 | 96 | 128 | 67.5 | 98 | 192 | 128 | 96 | Enquire Now |
