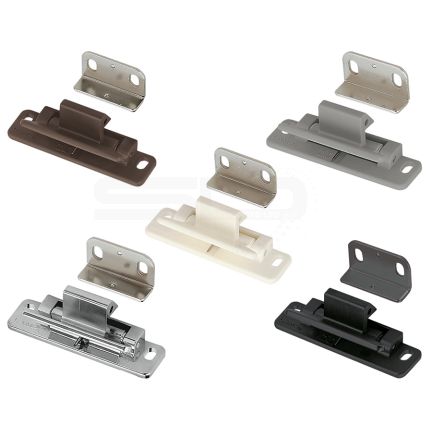

Sugatsune Lever Latch

Product Description
Features
> Can be used on overlay doors or flap doors where the door is longer than the frame’s height.
> Removes the need for handles or pulls.
> High resistance to vibrations from movement or from earthquakes.
> Installation position can be adjusted (Body: vertically ±1.5mm. Counter plate: horizontally ±1.5mm)
Parts Included
Truss head tapping screw 4×12.
Product Code | Colours | Retaining Force N | Retaining Force kgf | Weight | Type | Pricei | Stock | Pack Sizei | No. of Packs |
---|---|---|---|---|---|---|---|---|---|
LL-0010-BRN | Brown | 196 N | 20 kgf | 25 g | - | i | i | - | Enquire Now |
LL-0010-WHT | White | 196 N | 20 kgf | 25 g | - | £11.90 | 50 |
2
|
|
LL-0010-CHR | Chrome Plating | 196 N | 20 kgf | 25 g | - | i | i | - | Enquire Now |
LL-0010-GREY | Grey | 196 N | 20 kgf | 25 g | Fire Proof | i | i | - | Enquire Now |
