SR-EI Shaft Rings

simple_product

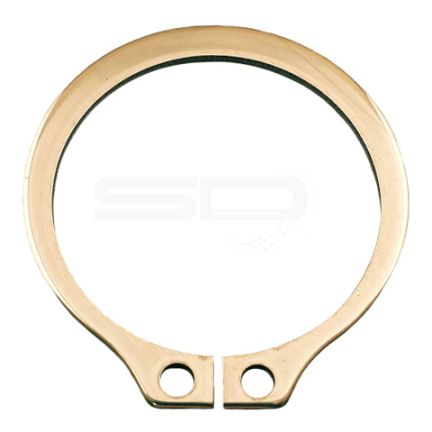

For illustration purposes only

Product Description

Axially Assembled, External

Once installed in the groove of a shaft, the portion of the ring protruding from the groove (also called a “shoulder”) holds an assembly in place.

Sizes 12 through 23 standard material – carbon steel; optional material – beryllium copper.
For plated rings, add 0.002” to the listed maximum thickness. Maximum thickness will be a minimum of 0.0002” less than the listed groove width (W) minimum.

0 5 0

This product is out of stock or not available from our website, please get in touch for further information

*Required Quantity

*Name

*Telephone Number

*Email

*Company

*Message

*Are you human? Then what is 12 + 7 =

* Required Fields

  • Standard next day delivery - £10

  • Next day delivery before noon - £24

  • Free delivery on all orders over £250

Product Code Shaft Dia. (mm) DsShaft Dia. (Ds DEC)Shaft Dia. (Ds FRACT)Groove Depth (d)Groove Dia. (Dg and Tol.)Groove Width (W and Tol.)Ring Free Dia. (Df and Tol.)Ring Thickness (T and Tol.)Wt. Per 1000 pcs.Expanded Over Shaft (L1)Released In Groove (L2) Qty (In Stock) Pack Size Price (Per Pack)
SR-EI-12 3.20.1251/80.0040.117 (±0.0015)0.012 (+0.002/-0.0)0.112 (+0.002/-0.004)0.01 (±0.001)0.0180.2220.214 N/A - N/A Enquire Now
SR-EI-15 40.1565/320.0050.146 (±0.0015)0.012 (+0.002/-0.0)0.142 (+0.002/-0.004)0.01 (±0.001)0.0370.270.26 N/A - N/A Enquire Now
SR-EI-18 4.80.1883/160.0060.175 (±0.0015)0.018 (+0.002/-0.0)0.168 (+0.002/-0.004)0.015 (±0.002)0.0590.2980.286 N/A - N/A Enquire Now
SR-EI-19 50.197-0.0060.185 (±0.0015)0.018 (+0.002/-0.0)0.179 (+0.002/-0.004)0.015 (±0.002)0.0630.3190.307 N/A - N/A Enquire Now
SR-EI-21 5.60.2197/320.0070.205 (±0.0015)0.018 (+0.002/-0.0)0.196 (+0.002/-0.004)0.015 (±0.002)0.0740.3380.324 N/A - N/A Enquire Now
SR-EI-23 60.23615/640.0070.222 (±0.0015)0.018 (+0.002/-0.0)0.215 (+0.002/-0.004)0.015 (±0.002)0.0860.3550.341 N/A - N/A Enquire Now
SR-EI-25 6.40.251/40.010.23 (±0.0015)0.029 (+0.003/-0.0)0.225 (+0.002/-0.004)0.025 (±0.002)0.210.450.43 N/A - N/A Enquire Now
SR-EI-27 70.276-0.010.255 (±0.002)0.029 (+0.003/-0.0)0.25 (+0.002/-0.005)0.025 (±0.002)0.230.480.46 N/A - N/A Enquire Now
SR-EI-28 7.10.2819/320.010.261 (±0.002)0.029 (+0.003/-0.0)0.256 (+0.002/-0.005)0.025 (±0.002)0.240.490.47 N/A - N/A Enquire Now
SR-EI-31 7.90.3125/160.0110.29 (±0.002)0.029 (+0.003/-0.0)0.281 (+0.002/-0.005)0.025 (±0.002)3.270.540.52 N/A - N/A Enquire Now
SR-EI-34 8.70.34411/320.0110.321 (±0.002)0.029 (+0.003/-0.0)0.309 (+0.002/-0.005)0.025 (±0.002)0.310.570.55 N/A - N/A Enquire Now
SR-EI-35 90.354-0.0120.33 (±0.002)0.029 (+0.003/-0.0)0.32 (+0.002/-0.005)0.025 (±0.002)0.350.590.57 N/A - N/A Enquire Now
SR-EI-37 9.50.3753/80.0120.352 (±0.002)0.029 (+0.003/-0.0)0.338 (+0.002/-0.005)0.025 (±0.002)0.390.610.59 N/A - N/A Enquire Now
SR-EI-39 100.394-0.0120.369 (±0.002)0.029 (+0.003/-0.0)0.354 (+0.002/-0.005)0.025 (±0.002)0.420.620.6 N/A - N/A Enquire Now
SR-EI-40 10.30.40613/320.0120.382 (±0.002)0.029 (+0.003/-0.0)0.366 (+0.002/-0.005)0.025 (±0.002)0.430.630.61 N/A - N/A Enquire Now
SR-EI-43 11.10.4387/160.0130.412 (±0.002)0.029 (+0.003/-0.0)0.395 (+0.002/-0.005)0.025 (±0.002)0.50.660.64 N/A - N/A Enquire Now
SR-EI-46SP1 11.70.461-0.0130.435 (±0.002)0.029 (+0.003/-0.0)0.42 (+0.002/-0.005)0.025 (±0.002)0.510.680.66 N/A - N/A Enquire Now
SR-EI-46 11.90.46915/320.0130.443 (±0.002)0.029 (+0.003/-0.0)0.428 (+0.002/-0.005)0.025 (±0.002)0.540.680.66 N/A - N/A Enquire Now
SR-EI-50 12.70.51/20.0160.468 (±0.002)0.039 (+0.003/-0.0)0.461 (+0.002/-0.005)0.035 (±0.002)0.910.770.74 N/A - N/A Enquire Now
SR-EI-55 140.551-0.0160.519 (±0.002)0.039 (+0.003/-0.0)0.509 (+0.005/-0.01)0.035 (±0.002)0.90.810.78 N/A - N/A Enquire Now
SR-EI-56 14.30.5629/160.0160.53 (±0.002)0.039 (+0.003/-0.0)0.521 (+0.005/-0.01)0.035 (±0.002)1.10.820.79 N/A - N/A Enquire Now
SR-EI-59 15.10.59419/320.0170.559 (±0.003)0.039 (+0.003/-0.0)0.55 (+0.005/-0.01)0.035 (±0.002)1.20.860.83 N/A - N/A Enquire Now
SR-EI-62 15.90.6255/80.0180.588 (±0.003)0.039 (+0.003/-0.0)0.579 (+0.005/-0.01)0.035 (±0.002)1.30.90.87 N/A - N/A Enquire Now
SR-EI-66 170.669-0.020.629 (±0.003)0.039 (+0.003/-0.0)0.621 (+0.005/-0.01)0.035 (±0.002)1.40.930.89 N/A - N/A Enquire Now
SR-EI-66.5 17.10.67243/640.020.631 (±0.003)0.039 (+0.003/-0.0)0.621 (+0.005/-0.01)0.035 (±0.002)1.40.930.89 N/A - N/A Enquire Now
SR-EI-68 17.50.68811/160.0210.646 (±0.003)0.046 (+0.003/-0.0)0.635 (+0.005/-0.01)0.042 (±0.002)1.81.010.97 N/A - N/A Enquire Now
SR-EI-75 190.753/40.0230.704 (±0.003)0.046 (+0.003/-0.0)0.693 (+0.005/-0.01)0.042 (±0.002)2.11.091.05 N/A - N/A Enquire Now
SR-EI-78 19.80.78125/320.0240.733 (±0.003)0.046 (+0.003/-0.0)0.722 (+0.005/-0.01)0.042 (±0.002)2.21.121.08 N/A - N/A Enquire Now
SR-EI-81 20.60.81213/160.0250.762 (±0.003)0.046 (+0.003/-0.0)0.751 (+0.005/-0.01)0.042 (±0.002)2.51.151.1 N/A - N/A Enquire Now
SR-EI-84 21.40.844-0.0260.791 (±0.003)0.046 (+0.003/-0.0)0.78 (+0.005/-0.01)0.042 (±0.002)2.71.181.13 N/A - N/A Enquire Now
SR-EI-87 22.20.8757/80.0270.821 (±0.003)0.046 (+0.003/-0.0)0.81 (+0.005/-0.01)0.042 (±0.002)2.81.211.16 N/A - N/A Enquire Now
SR-EI-93 23.80.93815/160.0280.882 (±0.003)0.046 (+0.003/-0.0)0.867 (+0.005/-0.01)0.042 (±0.002)3.11.341.29 N/A - N/A Enquire Now
SR-EI-98 250.98463/640.0290.926 (±0.003)0.046 (+0.003/-0.0)0.91 (+0.005/-0.01)0.042 (±0.002)3.51.391.34 N/A - N/A Enquire Now
SR-EI-100 25.4110.030.94 (±0.003)0.046 (+0.003/-0.0)0.925 (+0.005/-0.01)0.042 (±0.002)3.61.411.35 N/A - N/A Enquire Now
SR-EI-102 261.023-0.0310.961 (±0.003)0.046 (+0.003/-0.0)0.946 (+0.005/-0.01)0.042 (±0.002)3.91.431.37 N/A - N/A Enquire Now
SR-EI-106 271.0621-1/160.0320.998 (±0.004)0.056 (+0.004/-0.0)0.982 (+0.01/-0.015)0.05 (±0.002)4.81.51.44 N/A - N/A Enquire Now
SR-EI-112 28.61.1251-1/80.0331.059 (±0.004)0.056 (+0.004/-0.0)1.041 (+0.01/-0.015)0.05 (±0.002)5.11.551.49 N/A - N/A Enquire Now
SR-EI-118 30.21.1881-3/160.0351.118 (±0.004)0.056 (+0.004/-0.0)1.098 (+0.01/-0.015)0.05 (±0.002)5.61.611.54 N/A - N/A Enquire Now
SR-EI-125 31.71.251-1/40.0371.176 (±0.004)0.056 (+0.004/-0.0)1.156 (+0.01/-0.015)0.05 (±0.002)5.91.691.62 N/A - N/A Enquire Now
SR-EI-131 33.31.3121-5/160.041.232 (±0.004)0.056 (+0.004/-0.0)1.214 (+0.01/-0.015)0.05 (±0.002)6.81.751.67 N/A - N/A Enquire Now
SR-EI-137 34.91.3751-3/80.0421.291 (±0.004)0.056 (+0.004/-0.0)1.272 (+0.01/-0.015)0.05 (±0.002)7.21.81.72 N/A - N/A Enquire Now
SR-EI-143 36.51.4381-7/160.0441.35 (±0.004)0.056 (+0.004/-0.0)1.333 (+0.01/-0.015)0.05 (±0.002)8.11.871.79 N/A - N/A Enquire Now
SR-EI-150 38.11.51-1/20.0471.406 (±0.004)0.056 (+0.004/-0.0)1.387 (+0.01/-0.015)0.05 (±0.002)91.991.9 N/A - N/A Enquire Now
SR-EI-156 39.71.5621-9/160.0471.468 (±0.005)0.068 (+0.004/-0.0)1.446 (+0.013/-0.02)0.062 (±0.003)12.42.12.01 N/A - N/A Enquire Now
SR-EI-162 41.31.6251-5/80.0481.529 (±0.005)0.068 (+0.004/-0.0)1.503 (+0.013/-0.02)0.062 (±0.003)13.22.172.08 N/A - N/A Enquire Now
SR-EI-168 42.91.6881-11/160.0491.589 (±0.005)0.068 (+0.004/-0.0)1.56 (+0.013/-0.02)0.062 (±0.003)14.82.242.15 N/A - N/A Enquire Now
SR-EI-175 44.41.751-3/40.051.65 (±0.005)0.068 (+0.004/-0.0)1.618 (+0.013/-0.02)0.062 (±0.003)15.32.312.21 N/A - N/A Enquire Now
SR-EI-177 451.772-0.0511.669 (±0.005)0.068 (+0.004/-0.0)1.637 (+0.013/-0.02)0.062 (±0.003)15.42.332.23 N/A - N/A Enquire Now
SR-EI-181 461.8121-13/160.0521.708 (±0.005)0.068 (+0.004/-0.0)1.675 (+0.013/-0.02)0.062 (±0.003)15.62.382.28 N/A - N/A Enquire Now
SR-EI-187 47.61.8751-7/80.0531.769 (±0.005)0.068 (+0.004/-0.0)1.735 (+0.013/-0.02)0.062 (±0.003)17.32.442.34 N/A - N/A Enquire Now
SR-EI-196 501.9691-31/320.0561.857 (±0.005)0.068 (+0.004/-0.0)1.819 (+0.013/-0.02)0.062 (±0.003)182.572.46 N/A - N/A Enquire Now
SR-EI-200 50.8220.0571.886 (±0.005)0.068 (+0.004/-0.0)1.85 (+0.013/-0.02)0.062 (±0.003)192.62.49 N/A - N/A Enquire Now
SR-EI-206 52.42.0622-1/160.0581.946 (±0.006)0.086 (+0.005/-0.0)1.906 (+0.015/-0.025)0.078 (±0.003)252.682.57 N/A - N/A Enquire Now
SR-EI-212 542.1252-1/80.0612.003 (±0.006)0.086 (+0.005/-0.0)1.964 (+0.015/-0.025)0.078 (±0.003)26.12.782.66 N/A - N/A Enquire Now
SR-EI-215 54.82.1562-5/320.0622.032 (±0.006)0.086 (+0.005/-0.0)1.993 (+0.015/-0.025)0.078 (±0.003)26.32.812.69 N/A - N/A Enquire Now
SR-EI-225 57.12.252-1/40.0652.12 (±0.006)0.086 (+0.005/-0.0)2.081 (+0.015/-0.025)0.078 (±0.003)27.72.882.76 N/A - N/A Enquire Now
SR-EI-231 58.72.3122-5/160.0672.178 (±0.006)0.086 (+0.005/-0.0)2.139 (+0.015/-0.025)0.078 (±0.003)282.942.81 N/A - N/A Enquire Now
SR-EI-237 60.32.3752-3/80.0682.239 (±0.006)0.086 (+0.005/-0.0)2.197 (+0.015/-0.025)0.078 (±0.003)29.23.062.93 N/A - N/A Enquire Now
SR-EI-243 61.92.4382-7/160.0692.299 (±0.006)0.086 (+0.005/-0.0)2.255 (+0.015/-0.025)0.078 (±0.003)29.53.072.94 N/A - N/A Enquire Now
SR-EI-250 63.52.52-1/20.072.36 (±0.006)0.086 (+0.005/-0.0)2.313 (+0.015/-0.025)0.078 (±0.003)29.73.173.03 N/A - N/A Enquire Now
SR-EI-255 652.559-0.072.419 (±0.006)0.086 (+0.005/-0.0)2.377 (+0.02/-0.03)0.078 (±0.003)33.93.183.04 N/A - N/A Enquire Now
SR-EI-262 66.72.6252-5/80.0722.481 (±0.006)0.086 (+0.005/-0.0)2.482 (+0.02/-0.03)0.078 (±0.003)353.33.16 N/A - N/A Enquire Now
SR-EI-268 68.32.6882-11/160.0732.541 (±0.006)0.086 (+0.005/-0.0)2.485 (+0.02/-0.03)0.078 (±0.003)363.373.23 N/A - N/A Enquire Now
SR-EI-275 69.82.752-3/40.0742.602 (±0.006)0.103 (+0.005/-0.0)2.543 (+0.02/-0.03)0.093 (±0.003)42.53.483.34 N/A - N/A Enquire Now
SR-EI-287 732.8752-7/80.0772.721 (±0.006)0.103 (+0.005/-0.0)2.659 (+0.02/-0.03)0.093 (±0.003)48.53.63.45 N/A - N/A Enquire Now
SR-EI-293 74.62.9382-15/160.0792.779 (±0.006)0.103 (+0.005/-0.0)2.717 (+0.02/-0.03)0.093 (±0.003)503.663.51 N/A - N/A Enquire Now
SR-EI-300 76.2330.0812.838 (±0.006)0.103 (+0.005/-0.0)2.775 (+0.02/-0.03)0.093 (±0.003)523.63.44 N/A - N/A Enquire Now
SR-EI-306 77.83.0623-1/160.0822.898 (±0.006)0.103 (+0.005/-0.0)2.832 (+0.02/-0.03)0.093 (±0.003)47.53.743.58 N/A - N/A Enquire Now
SR-EI-312 79.43.1253-1/80.0842.957 (±0.006)0.103 (+0.005/-0.0)2.892 (+0.02/-0.03)0.093 (±0.003)583.853.69 N/A - N/A Enquire Now
SR-EI-315 80.23.1563-5/320.0852.986 (±0.006)0.103 (+0.005/-0.0)2.92 (+0.02/-0.03)0.093 (±0.003)593.883.71 N/A - N/A Enquire Now
SR-EI-325 82.53.253-1/40.0873.076 (±0.006)0.103 (+0.005/-0.0)3.006 (+0.02/-0.03)0.093 (±0.003)623.933.76 N/A - N/A Enquire Now
SR-EI-334 853.3463-11/320.093.166 (±0.006)0.103 (+0.005/-0.0)3.092 (+0.02/-0.03)0.093 (±0.003)644.023.85 N/A - N/A Enquire Now
SR-EI-343 87.33.4383-7/160.093.257 (±0.006)0.103 (+0.005/-0.0)3.179 (+0.02/-0.03)0.093 (±0.003)664.143.96 N/A - N/A Enquire Now
SR-EI-350 88.93.53-1/20.0923.316 (±0.006)0.12 (+0.005/-0.0)3.237 (+0.02/-0.03)0.109 (±0.003)724.163.98 N/A - N/A Enquire Now
SR-EI-354 903.543-0.0933.357 (±0.006)0.12 (+0.005/-0.0)3.227 (+0.02/-0.03)0.109 (±0.003)734.254.07 N/A - N/A Enquire Now
SR-EI-362 92.13.6253-5/80.0953.435 (±0.006)0.12 (+0.005/-0.0)3.352 (+0.02/-0.03)0.109 (±0.003)764.334.14 N/A - N/A Enquire Now
SR-EI-368 93.73.6883-11/160.0973.493 (±0.006)0.12 (+0.005/-0.0)3.41 (+0.02/-0.03)0.109 (±0.003)804.314.12 N/A - N/A Enquire Now
SR-EI-375 95.23.753-3/40.0993.552 (±0.006)0.12 (+0.005/-0.0)3.468 (+0.02/-0.03)0.109 (±0.003)834.524.33 N/A - N/A Enquire Now
SR-EI-387 98.43.8753-7/80.1013.673 (±0.006)0.12 (+0.005/-0.0)3.584 (+0.02/-0.03)0.109 (±0.003)884.624.42 N/A - N/A Enquire Now
SR-EI-393 1003.9383-15/160.1023.734 (±0.006)0.12 (+0.005/-0.0)3.642 (+0.02/-0.03)0.109 (±0.003)954.74.5 N/A - N/A Enquire Now
SR-EI-400 101.6440.1043.792 (±0.006)0.12 (+0.005/-0.0)3.7 (+0.02/-0.03)0.109 (±0.003)1014.764.56 N/A - N/A Enquire Now
SR-EI-412 104.84.1254-1/80.1053.915 (±0.006)0.12 (+0.005/-0.0)3.8 (+0.02/-0.03)0.109 (±0.003)101.254.78 N/A - N/A Enquire Now
SR-EI-425 1084.254-1/40.0924.065 (±0.006)0.12 (+0.005/-0.0)3.989 (+0.02/-0.03)0.109 (±0.003)1124.984.8 N/A - N/A Enquire Now
SR-EI-437 111.14.3754-3/80.0924.19 (±0.006)0.12 (+0.005/-0.0)4.106 (+0.02/-0.03)0.109 (±0.003)1155.225.04 N/A - N/A Enquire Now
SR-EI-450 114.34.54-1/20.0654.31 (±0.006)0.12 (+0.005/-0.0)4.223 (+0.02/-0.03)0.109 (±0.003)1325.375.18 N/A - N/A Enquire Now
SR-EI-475 120.64.754-3/40.14.55 (±0.006)0.12 (+0.005/-0.0)4.458 (+0.02/-0.03)0.109 (±0.003)1135.625.42 N/A - N/A Enquire Now
SR-EI-500 127550.1054.79 (±0.006)0.12 (+0.005/-0.0)4.692 (+0.02/-0.03)0.109 (±0.003)1495.775.56 N/A - N/A Enquire Now
SR-EI-525 133.35.255-1/40.115.03 (±0.007)0.139 (+0.006/-0.0)4.927 (+0.02/-0.04)0.125 (±0.004)1906.15.89 N/A - N/A Enquire Now
SR-EI-550 139.75.55-1/20.1175.265 (±0.007)0.139 (+0.006/-0.0)5.162 (+0.02/-0.04)0.125 (±0.004)202.56.456.22 N/A - N/A Enquire Now
SR-EI-575 1465.755-3/40.1225.505 (±0.007)0.139 (+0.006/-0.0)5.396 (+0.02/-0.04)0.125 (±0.004)2206.696.45 N/A - N/A Enquire Now
SR-EI-600 152.4660.1275.745 (±0.007)0.139 (+0.006/-0.0)5.631 (+0.02/-0.04)0.125 (±0.004)2106.916.66 N/A - N/A Enquire Now
SR-EI-625 158.76.256-1/405.985 (±0.008)0.174 (+0.008/-0.0)5.866 (+0.02/-0.05)0.156 (±0.005)2824.267 N/A - N/A Enquire Now
SR-EI-650 165.16.56-1/20.1376.225 (±0.008)0.174 (+0.008/-0.0)6.1 (+0.02/-0.05)0.156 (±0.005)3307.627.35 N/A - N/A Enquire Now
SR-EI-675 171.46.756-3/40.1426.465 (±0.008)0.174 (+0.008/-0.0)6.335 (+0.02/-0.05)0.156 (±0.005)3567.837.55 N/A - N/A Enquire Now
SR-EI-700 177.8770.1476.705 (±0.008)0.174 (+0.008/-0.0)6.57 (+0.05/-0.13)0.156 (±0.005)3717.867.78 N/A - N/A Enquire Now
SR-EI-725 184.27.257-1/40.1546.942 (±0.008)0.209 (+0.008/-0.0)6.775 (+0.05/-0.13)0.187 (±0.005)5107.598.13 N/A - N/A Enquire Now
SR-EI-750 190.57.57-1/20.167.18 (±0.008)0.209 (+0.008/-0.0)7.009 (+0.05/-0.13)0.187 (±0.005)5348.738.41 N/A - N/A Enquire Now
SR-EI-775 196.97.757-3/40.1657.42 (±0.008)0.209 (+0.008/-0.0)7.243 (+0.05/-0.13)0.187 (±0.005)5458.858.52 N/A - N/A Enquire Now
SR-EI-800 203.2880.177.66 (±0.008)0.209 (+0.008/-0.0)7.478 (+0.05/-0.13)0.187 (±0.005)649.258.91 N/A - N/A Enquire Now
SR-EI-825 209.68.258-1/40.1757.9 (±0.008)0.209 (+0.008/-0.0)7.712 (+0.05/-0.13)0.187 (±0.005)6659.549.19 N/A - N/A Enquire Now
SR-EI-850 215.98.58-1/20.188.14 (±0.008)0.209 (+0.008/-0.0)7.947 (+0.05/-0.13)0.187 (±0.005)6929.799.43 N/A - N/A Enquire Now
SR-EI-875 222.38.758-3/40.1858.38 (±0.008)0.209 (+0.008/-0.0)8.181 (+0.05/-0.13)0.187 (±0.005)71210.410 N/A - N/A Enquire Now
SR-EI-900 228.6990.198.62 (±0.008)0.209 (+0.008/-0.0)8.415 (+0.05/-0.13)0.187 (±0.005)73710.610.22 N/A - N/A Enquire Now
SR-EI-925 234.99.259-1/40.1958.86 (±0.008)0.209 (+0.008/-0.0)8.65 (+0.05/-0.13)0.187 (±0.005)7610.8510.5 N/A - N/A Enquire Now
SR-EI-950 241.39.59-1/20.29.1 (±0.008)0.209 (+0.008/-0.0)8.885 (+0.05/-0.13)0.187 (±0.005)78511.110.7 N/A - N/A Enquire Now
SR-EI-975 247.69.759-3/40.2069.338 (±0.008)0.209 (+0.008/-0.0)9.12 (+0.05/-0.13)0.187 (±0.005)84511.3510.95 N/A - N/A Enquire Now
SR-EI-1000 25410100.2129.575 (±0.008)0.209 (+0.008/-0.0)9.355 (+0.05/-0.13)0.187 (±0.005)91011.611.2 N/A - N/A Enquire Now
