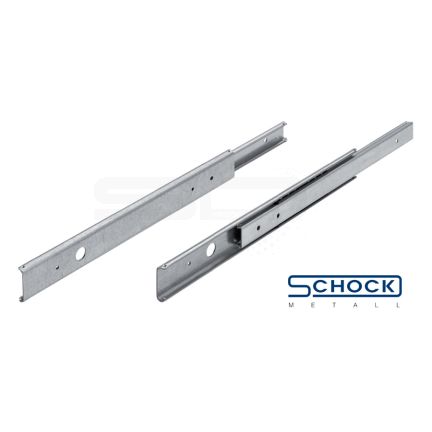

Partial Extension Series 012 - 012-10367
Product Description
Load capacity up to 70 kg.
Materials and finishes
Slide rails: hot-dip galvanized steel
Ball cages: plastic
Balls: hardened carbon steel
Temperature range
Working temperature +10°C to +40°C
Storage and transport temperature -20°C up to max. +80°C
| Length | Travel | Horizontal Load Capacity Per Pair (kg) (at 100.000 cycles) | Load Capacity Per Pair (kg) (at 100.000 cycles) | A | B | X | Weight (kg / pair) | Drawer Depth |
|---|---|---|---|---|---|---|---|---|
| 242 | 154 | 10 | 35 | 166 | 202 | 192 | 0.59 | 242 - 380 |
Special Price
£5.00
Regular Price
£5.00
Partial Extension Series 012 - 012-10367 is available to buy in increments of 1
