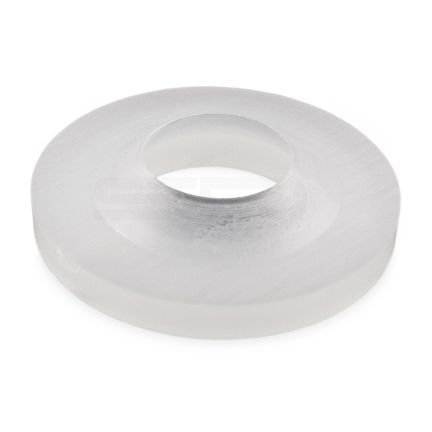

Locking and Sealing Washers
Product Description
This washer's unique geometry creates an interference both on the OD of a hex nut and on the ID on the shanks or the thread of the screw. As the screw is tightened the OD cold flows around the hex of a nut and the ID cold flows into the threads of the bolt or screw.
Material
Natural Nylon 6/6
| Product Code | Screw Size | A | B | C | T | No. of Packs |
|---|---|---|---|---|---|---|
| LSW-M3-1 | M3 | 5.8 | 3.1 | 1.2 | 0.6 | Enquire Now |
| LSW-M3-2 | M3 | 7 | 3.1 | 1.4 | 0.7 | Enquire Now |
| LSW-M4-1 | M4 | 9 | 4.1 | 2.8 | 1.25 | Enquire Now |
| LSW-M5-1 | M5 | 10.4 | 5.1 | 3.5 | 1.4 | Enquire Now |
| LSW-M6-1 | M6 | 10.7 | 6.4 | 3.7 | 1 | Enquire Now |
| LSW-M6-2 | M6 | 12 | 6.1 | 4 | 1.6 | Enquire Now |
| LSW-M8-1 | M8 | 15.8 | 8.1 | 4.6 | 2.1 | Enquire Now |
| LSW-M10-1 | M10 | 17.8 | 10.3 | 5 | 2.1 | Enquire Now |
| LSW-M10-2 | M10 | 19.6 | 10 | 5.3 | 2.1 | Enquire Now |
| LSW-M12-1 | M12 | 22 | 12 | 5.8 | 2.3 | Enquire Now |
| LSW-M14-1 | M14 | 25.2 | 14.2 | 5.5 | 2.6 | Enquire Now |
| LSW-M16-1 | M16 | 29.4 | 16.2 | 6.2 | 2.6 | Enquire Now |
| LSW-M18-1 | M18 | 31.5 | 18.1 | 6.9 | 2.7 | Enquire Now |
| LSW-M20-1 | M20 | 31.5 | 20.3 | 7 | 2.7 | Enquire Now |
| LSW-M20-2 | M20 | 35.5 | 20.2 | 6.9 | 2.8 | Enquire Now |
| LSW-M22-1 | M22 | 36 | 22.5 | 6 | 2.5 | Enquire Now |
| LSW-M24-1 | M24 | 37.8 | 24.3 | 7.9 | 3 | Enquire Now |
| LSW-M27-1 | M27 | 40 | 27.3 | 7.9 | 3.1 | Enquire Now |
| LSW-M30-1 | M30 | 49.2 | 30.2 | 9.3 | 3.2 | Enquire Now |
| LSW-M33-1 | M33 | 50.1 | 33.2 | 9.5 | 3.4 | Enquire Now |
| LSW-M36-1 | M36 | 64 | 36.4 | 11.8 | 3.8 | Enquire Now |
| LSW-M39-1 | M39 | 69 | 39.2 | 11 | 3.8 | Enquire Now |
