Jubilee® Juniors - Mild Steel
Product Description

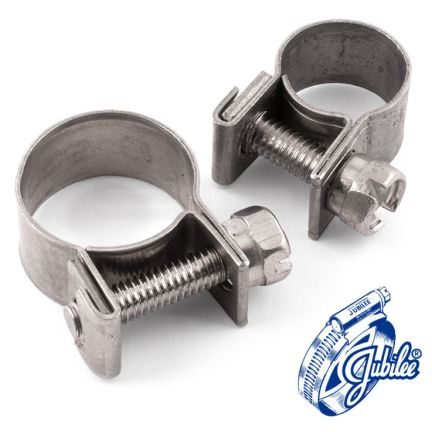

These mini clips, also known as nut & bolt clips, are ideal for small bore hoses with relatively low pressures, where little clamping force is required. Used in low pressure applications such as a fuel line.
| Product Code | Adjustment (mm) | Band Width (mm) | Band Thickness (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Maximum Pressure (Psi) | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| JCJ-MS-9 | 7 - 9 | 9.1 | 0.6 | 1.5 | 2 | 75 | £5.00 | 200 |
10
|
|
| JCJ-MS-10 | 8 - 10 | 9.1 | 0.6 | 1.5 | 2 | 75 | £5.00 | 250 |
10
|
|
| JCJ-MS-11 | 9 - 11 | 9.1 | 0.6 | 1.5 | 2 | 75 | £5.00 | 200 |
10
|
|
| JCJ-MS-13 | 11 - 13 | 9.1 | 0.6 | 1.5 | 2 | 50 | £5.00 | 200 |
10
|
|
| JCJ-MS-14 | 12 - 14 | 9.1 | 0.6 | 1.5 | 2 | 50 | £5.00 | 246 |
10
|
|
| JCJ-MS-15 | 13 - 15 | 9.1 | 0.6 | 1.5 | 2 | 50 | £5.00 | 190 |
10
|
|
| JCJ-MS-16 | 14 - 16 | 9.1 | 0.6 | 1.5 | 2 | 50 | £5.00 | 190 |
10
|
|
| JCJ-MS-17 | 15 - 17 | 9.1 | 0.6 | 1.5 | 2 | 50 | £5.00 | 190 |
10
|
|
| JCJ-MS-18 | 16 - 18 | 9.1 | 0.6 | 1.5 | 2 | 50 | £5.00 | 190 |
10
|
|
| JCJ-MS-20 | 18 - 20 | 9.1 | 0.6 | 1.5 | 2 | 50 | £5.00 | 190 |
10
|
