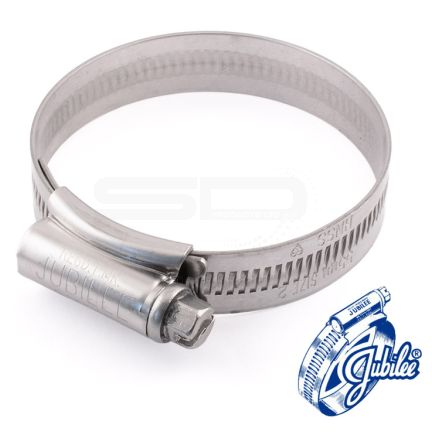

Jubilee® Clips - 316 / A4 Stainless Steel
Product Description
The Original Range Jubilee® hose clips with the highest corrosion resistance, our 316 (18/10) stainless steel Jubilee® clips, are the hose clip of preference in shipbuilding and maintenance when the highest level of corrosion resistance is demanded. Other areas where our Original Range 316 stainless steel clips are used are the food and chemicals industries, where highly corrosive acids can be present, and this material grade is also favoured by the oil and gas industry.
| Product Code | Diameter (mm) | Band Width (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Maximum Pressure (Psi) | Pricei | Stock | Pack Sizei | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|
| JC-A4-000 | 9.5 - 12 | 9.9 | 3.4 | 4.5 | 203 | £16.17 | 220 |
5
|
|
| JC-A4-M00 | 11 - 16 | 9.9 | 3.4 | 4.5 | 203 | £16.26 | 315 |
5
|
|
| JC-A4-00 | 13 - 20 | 9.9 | 3.4 | 4.5 | 203 | £16.37 | 400 |
5
|
|
| JC-A4-0 | 16 - 22 | 13 | 4.2 | 5.6 | 203 | £19.91 | 225 |
5
|
|
| JC-A4-0X | 18 - 25 | 13 | 4.2 | 5.6 | 203 | £20.37 | 200 |
5
|
|
| JC-A4-1A | 22 - 30 | 13 | 5.1 | 6.8 | 203 | £21.95 | 200 |
5
|
|
| JC-A4-1 | 25 - 35 | 13 | 5.1 | 6.8 | 102 | £22.62 | 200 |
5
|
|
| JC-A4-1X | 30 - 40 | 13 | 5.1 | 6.8 | 102 | £23.21 | i |
5
|
Enquire Now |
| JC-A4-1M | 32 - 45 | 13 | 5.1 | 6.8 | 102 | £24.22 | 33 |
5
|
|
| JC-A4-2A | 35 - 50 | 13 | 5.9 | 7.9 | 102 | £25.86 | 80 |
5
|
|
| JC-A4-2 | 40 - 55 | 13 | 5.9 | 7.9 | 102 | £27.19 | 30 |
5
|
|
| JC-A4-2X | 45 - 60 | 13 | 5.9 | 7.9 | 102 | £28.42 | 30 |
5
|
|
| JC-A4-3 | 55 - 70 | 13 | 6.7 | 9 | 102 | £30.29 | 20 |
5
|
|
| JC-A4-3X | 60 - 80 | 13 | 6.7 | 9 | 44 | £32.16 | 45 |
5
|
|
| JC-A4-4 | 70 - 90 | 13 | 6.7 | 9 | 44 | £33.79 | 55 |
5
|
|
| JC-A4-4X | 85 - 100 | 13 | 6.7 | 9 | 44 | £35.71 | 40 |
5
|
|
| JC-A4-5 | 90 - 120 | 13 | 6.7 | 9 | 44 | £38.81 | 20 |
5
|
|
| JC-A4-6 | 110 - 140 | 13 | 6.7 | 9 | 44 | £41.62 | 35 |
5
|
|
| JC-A4-6X | 120 - 150 | 13 | 6.7 | 9 | 18 | £44.27 | 50 |
5
|
|
| JC-A4-7 | 135 - 165 | 13 | 5.9 | 7.9 | 18 | £47.04 | 24 |
5
|
|
| JC-A4-7.5 | 158 - 190 | 13 | 5.9 | 7.9 | 18 | £51.90 | 20 |
5
|
|
| JC-A4-8.5 | 184 - 216 | 13 | 5.9 | 7.9 | 18 | £58.96 | 20 |
5
|
|
| JC-A4-9.5 | 210 - 242 | 13 | 5.9 | 7.9 | 18 | £66.99 | 20 |
5
|
|
| JC-A4-10.5 | 235 - 267 | 13 | 5.9 | 7.9 | 18 | £72.76 | 30 |
5
|
|
| JC-A4-11.5 | 260 - 292 | 13 | 5.9 | 7.9 | 18 | £77.46 | 20 |
5
|
|
| JC-A4-12.5 | 286 - 318 | 13 | 5.9 | 7.9 | 18 | £81.27 | 5 |
5
|
