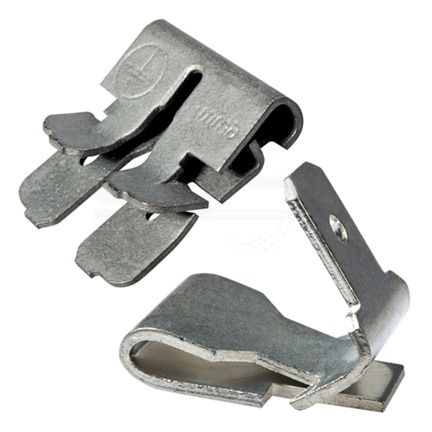

Earthing Clips
Product Description
Form 1
Designed for grounding metal panels, ensures conductivity between a metal edge and a grounding wire with a lug connector. Can be inserted onto the edge by hand or with a mallet. Sharp teeth ensure good pull off resistance and a good connection through the surface treatment of panels.
Form 2
Designed for use on aluminium frames panels, for examples: solar panels. Ensures conductivity between an aluminium edge and a grounding wire type H07V-K6. One single action required to cut the wire insulation, connecting the wire and fixing it to the frame. Installation tool available.
Form 1
| Product Code | F | Height (h) | Lug Angle (a) | Lug Quantity | Lug Width (b1) | Material Thickness (s) | Width (b) | No. of Packs |
|---|---|---|---|---|---|---|---|---|
| EAC-1010 | 0.3 - 0.5 | 9 | 40 | 1 | 6.3 | 0.5 | 10 | Enquire Now |
| EAC-1015 | 0.4 - 1.5 | 16 | 40 | 1 | 6.3 | 0.8 | 11 | Enquire Now |
| EAC-1020 | 1 - 2 | 16 | 40 | 1 | 6.3 | 0.8 | 11 | Enquire Now |
| EAC-1025 | 1 - 2 | 16 | 40 | 2 | 6.3 | 0.8 | 16 | Enquire Now |
Form 2
| Product Code | F | Height (h) | Material Thickness (s) | Width (b) | Length (l) | No. of Packs |
|---|---|---|---|---|---|---|
| EAC-1030 | 1.2 - 2.5 | 5.84 | 0.8 | 20 | 23.3 | Enquire Now |
