Earthing Clips - EAC-1020
Product Description
Form 1

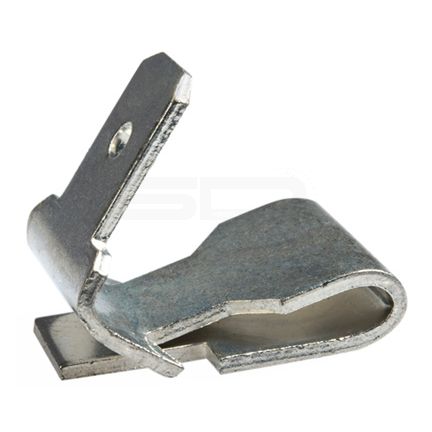

Designed for grounding metal panels, ensures conductivity between a metal edge and a grounding wire with a lug connector. Can be inserted onto the edge by hand or with a mallet. Sharp teeth ensure good pull off resistance and a good connection through the surface treatment of panels.
Form 2
Designed for use on aluminium frames panels, for examples: solar panels. Ensures conductivity between an aluminium edge and a grounding wire type H07V-K6. One single action required to cut the wire insulation, connecting the wire and fixing it to the frame. Installation tool available.
| F | Height (h) | Lug Angle (a) | Lug Quantity | Lug Width (b1) | Material Thickness (s) | Width (b) |
|---|---|---|---|---|---|---|
| 1 - 2 | 16 | 40 | 1 | 6.3 | 0.8 | 11 |
