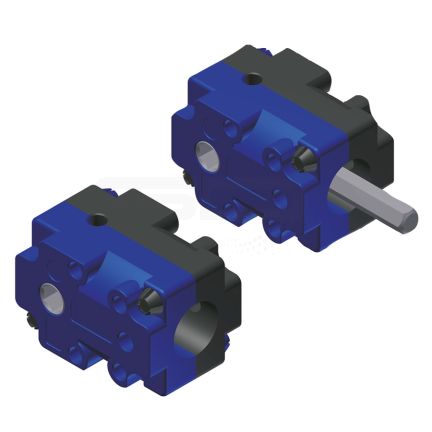

Deflection gear 3039.00-0001
Product Description
Gear for the deflection of a rotation by 90° degree
Special features
Ratio 1:1
Synthetic gear housing
Case-hardened steel bevel wheels
Customer specific
The gear is available with an axis hex 6 mm with a customer specific length, as well as without axis.
Ratio | Input | Output | Number of bevel wheels | Housing material | Max. output torque |
---|---|---|---|---|---|
1:1 | hex 6 mm | hex 6 mm | 2 | synthetic | 4 Nm |
