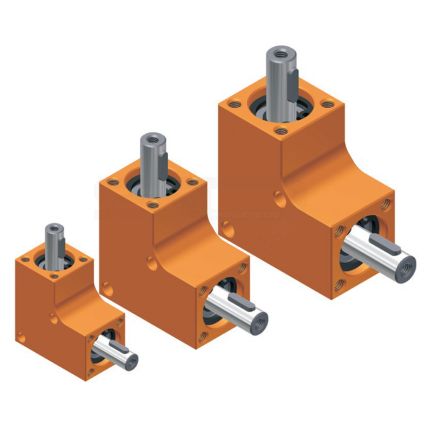

Angular gear Ket-Bee 200X
Product Description
Angular gear for manifold applications
7 sizes, side length from 32mm to 60mm
Ratio 1 : 1
Aluminium housing, anodized
Steel bevel wheels, case-hardened
Maintenance-free
Special features
Smallest dimensions for max. torque
Smooth running
Simple screw mounting
Silent running
Additional technical data
| Product Code | a | b | Type | Ratio i | Max. torque M | No. of Packs |
|---|---|---|---|---|---|---|
| 2001.00-0001 | 18 mm | 32 mm | A | 1:1 | bis 0.1 Nm | Enquire Now |
| 2002.00-0001 | 20 mm | 35 mm | B | 1:1 | bis 0.3 Nm | Enquire Now |
| 2003.00-0001 | 24 mm | 42 mm | C | 1:1 | bis 1.0 Nm | Enquire Now |
| 2004.00-0001 | 26 mm | 46 mm | D | 1:1 | bis 1.5 Nm | Enquire Now |
| 2005.00-0001 | 30 mm | 53 mm | E | 1:1 | bis 2.0 Nm | Enquire Now |
| 2006.00-0001 | 32 mm | 56 mm | F | 1:1 | bis 3.0 Nm | Enquire Now |
| 2007.00-0001 | 35 mm | 60 mm | G | 1:1 | bis 4.0 Nm | Enquire Now |
