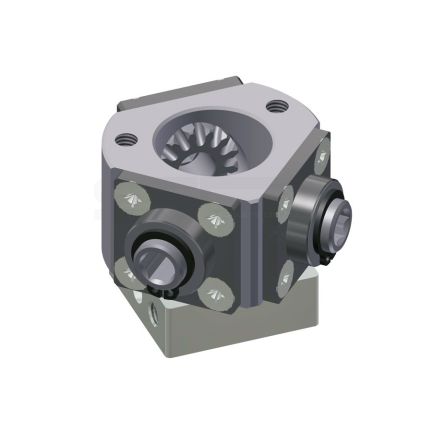

Deflection gear 3014.00-0070
Product Description
Gear for deflecting for a rotary motion at an angle of 90°, 120° or 135°.
Special features
Ratio 1.3:1
Housing made of reinforced glass-fibre or aluminium at an angle of 90°/120°/135°
Case-hardened steel bevel wheels
Customer specific
Because of its modular design it is possible to meet special customer requirements even for small quantities. The deflection gears 3014 can be supplied with or without adapter plate.
| Ratio | Input | Number of bevel wheels | Max. drive torque | Housing/angle | Material |
|---|---|---|---|---|---|
| 1.3 : 1 | hex 6 mm | 3 | 3 Nm | 90°/135° | aluminium |
