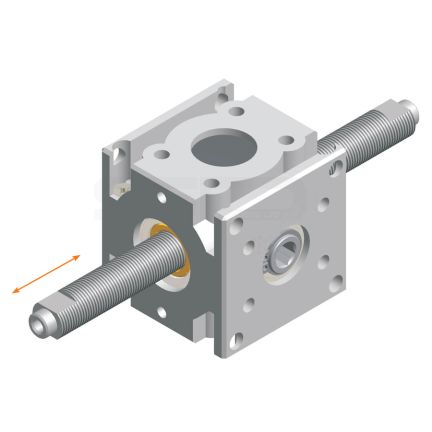

Bevel gear with spindle 3901

Product Description

Bevel gear for through-going, not rotating, spindle for push and pull movements. Gear particularly suitable for machine construction and lifting systems for skylights, winter gardens and green houses.

Special features
A special toothing ensures a smooth running of the gear.
Ratio 1.44:1; 1.5:1
Housing made of die-cast zinc
Case hardened, bearing seated steel cog wheels

Customer specific
The gear can be supplied in combination with various types of threads. Spindles can be produced to customer requirements.

Caution
Please take into account that depending on the spindle pitch, the system could back-drive.

Ratio Input Type of thread Max. lifting force
1.5:1 hex 7 mm Tr12x3 RH 800 N
