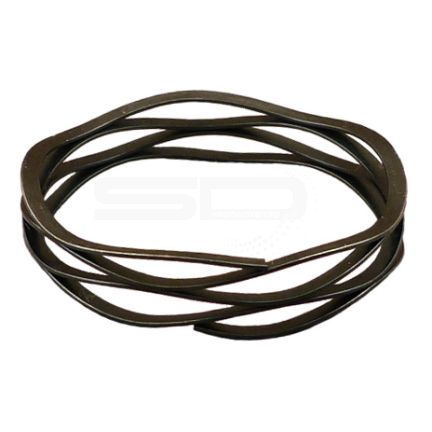

WSMT Wave Springs - Imperial - WSMT-H-I-175 J

Product Description

Multi Turn, Inch

Used for low force applications with large deflections: more turns equals less force. Utilises nearly half the space as helical compression springs while producing the same force.

Material codes: ST = Carbon Steel. SQ = 17-7 PH/C Stainless Steel. Special alloys available upon request.

Housing Dia. (Dh DEC) Housing Dia. (Dh FRAC) Housing Dia. (Dh mm) Shaft Dia. Clearance (Ds) Load (lb) Work Height (WH) Free Height Ref. (FH) Number of Waves Number of Turns Thickness T Section S Spring Rate Ref. Lbs./in.
1.75 1-3/4 44.4 1.34 90 1.317 2 4.5 16 0.024 0.148 132
